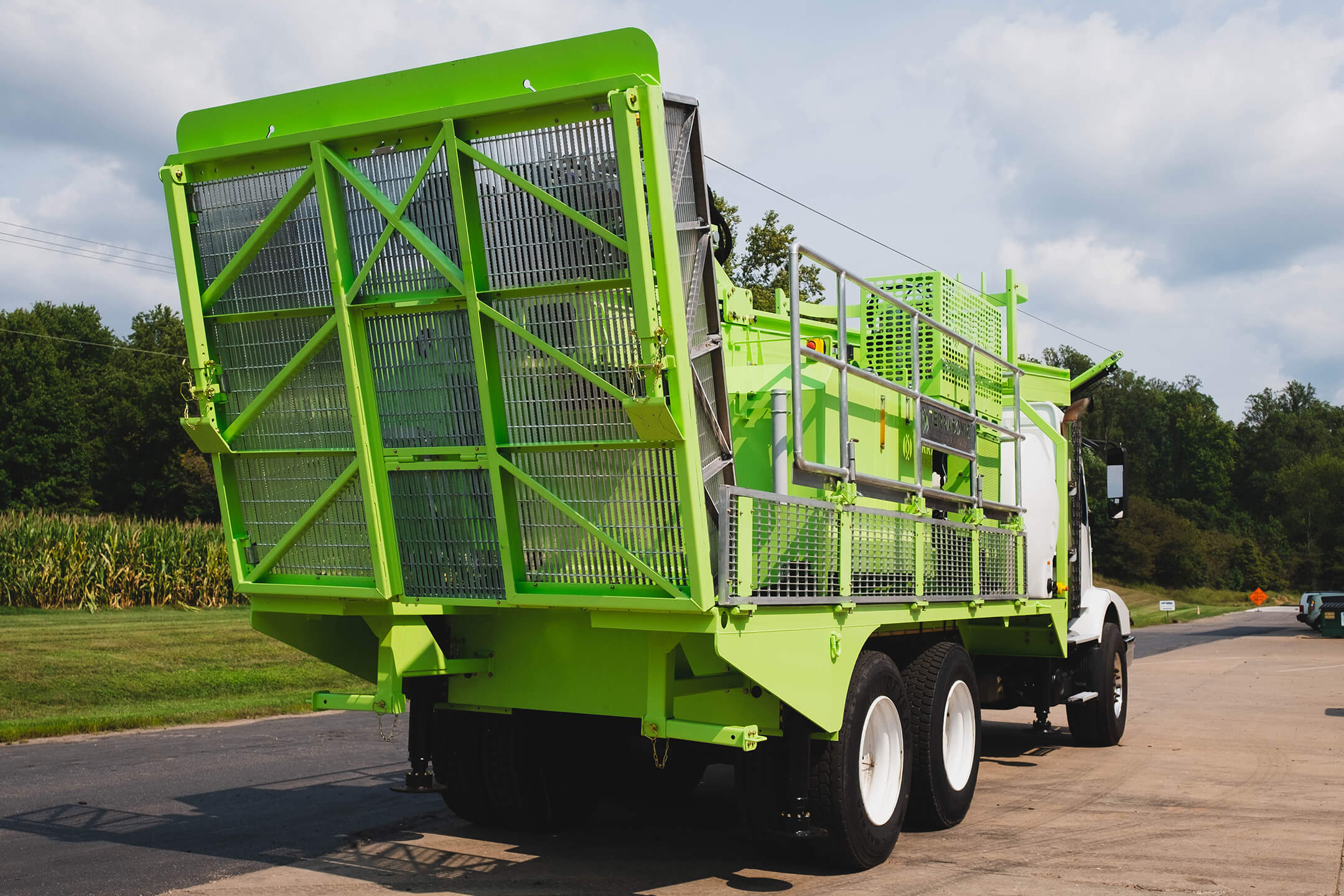

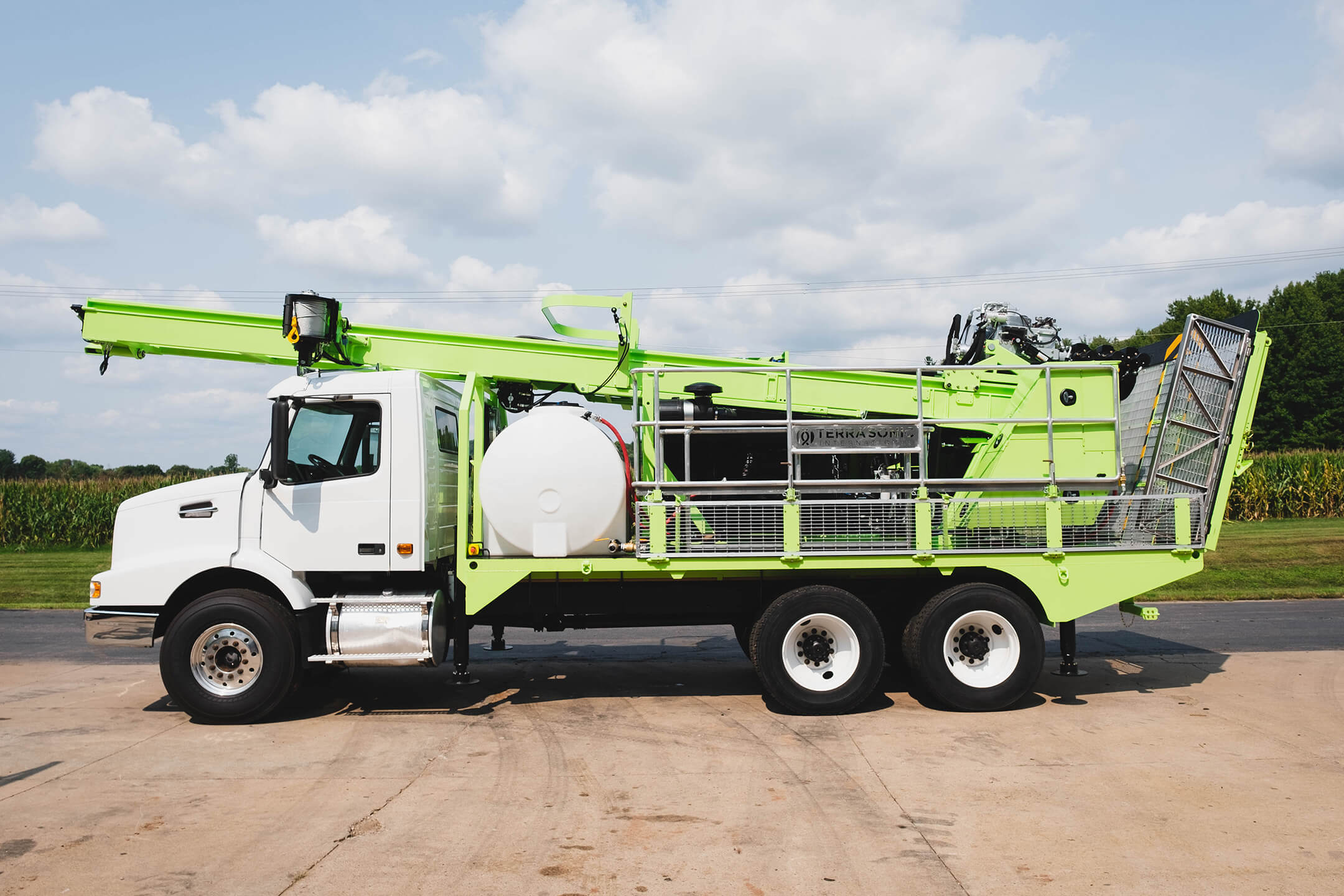

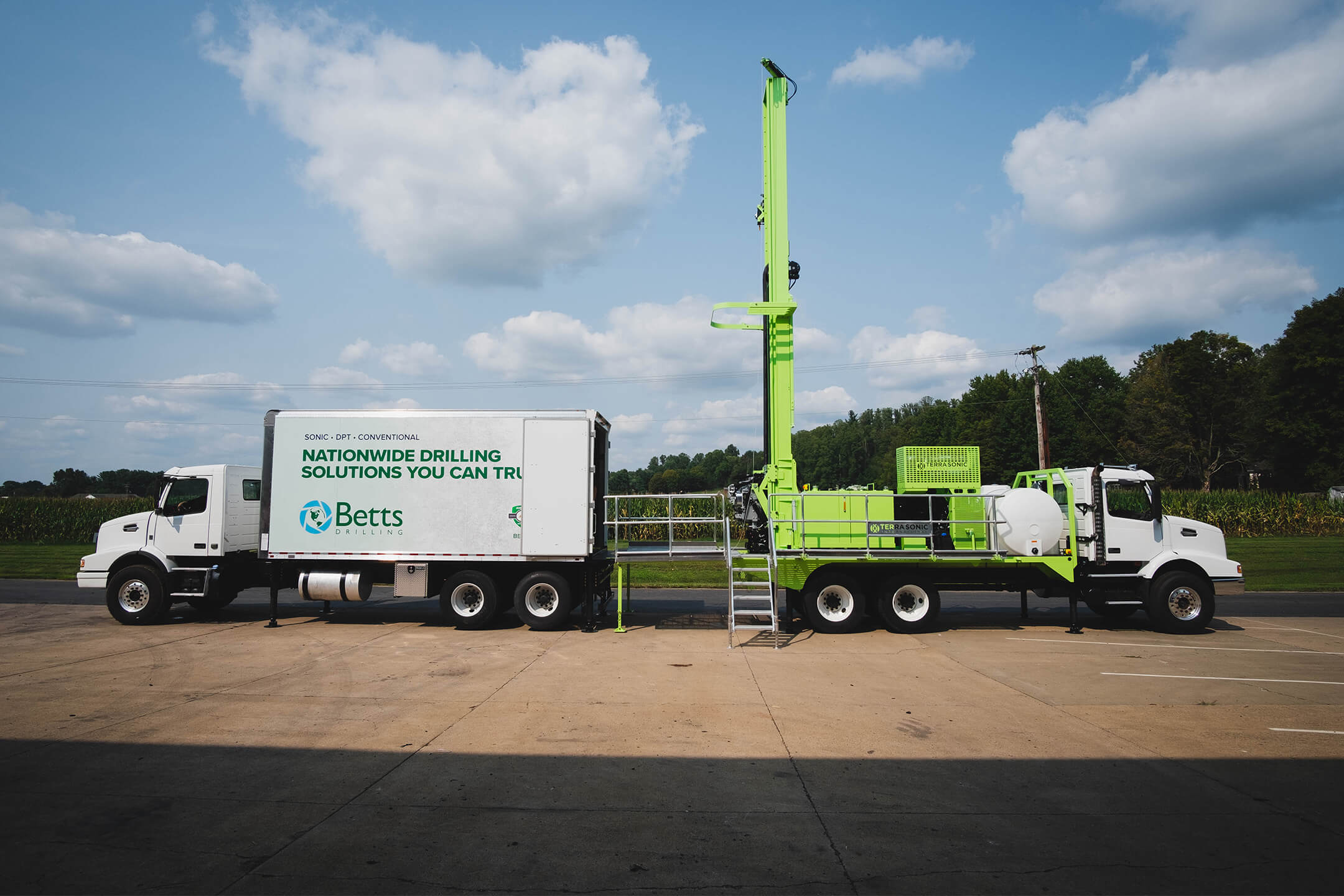

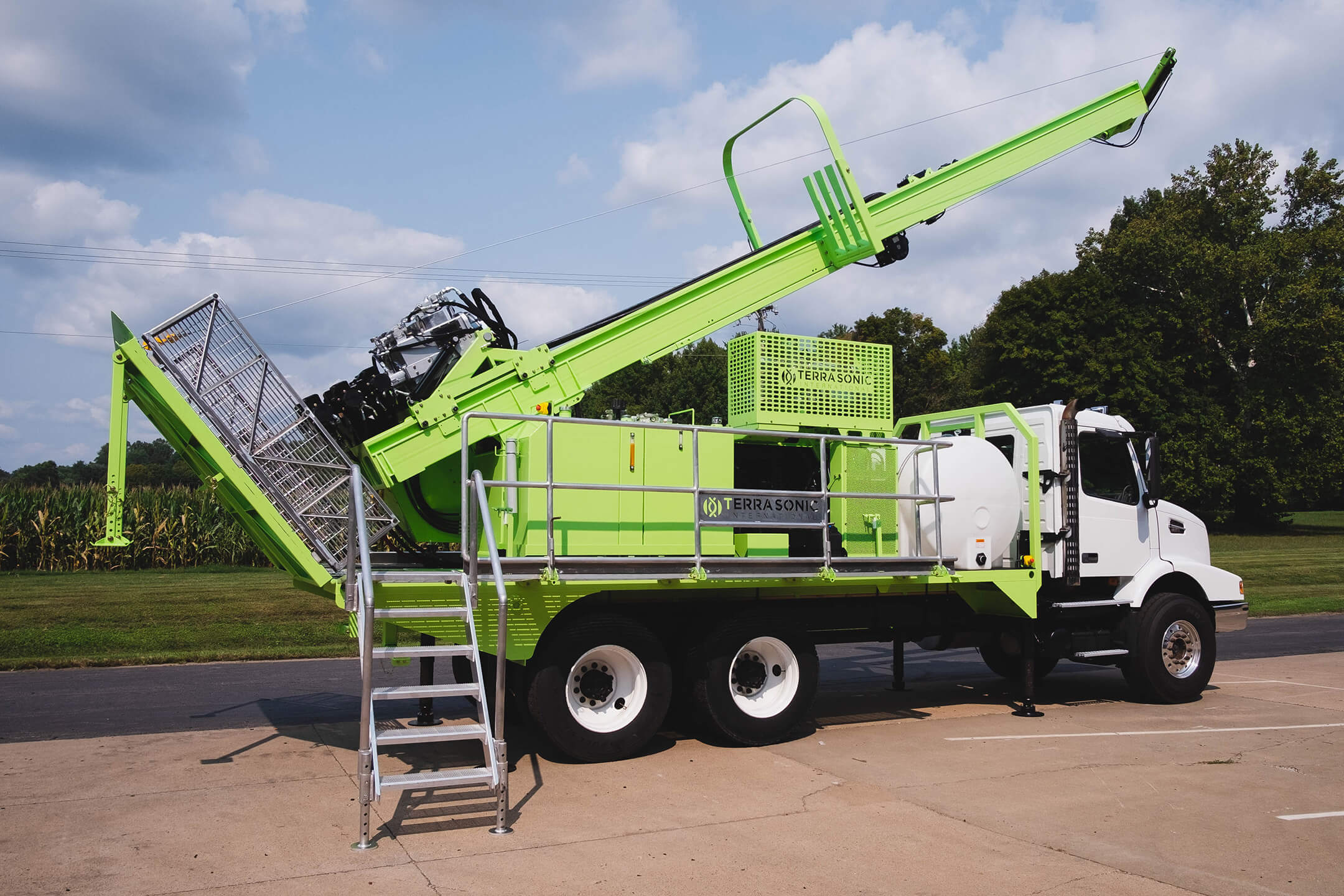

TSi 150T Truck-Mounted Sonic Drill Rig
| Specification | Value |
|---|---|
| Engine Type | 278 HP Tier 4 Diesel |
| Power | Up to 50,000 LBS of Resonant Sonic Energy |
| Oscillator Frequency | 0 to 50 HZ |
| Drilling Depth | Up to 1,000 FT |
| Drilling Angle | Vertical to 45º |
| Drilling Range | Uses Drill Steel from 3” to 12” in Diameter |
| Down Force | Up to 50,000 LBS |
| Pull Back Force | Up to 22,000 LBF |
| Added Power | 250 HP Separate Deck Engine Powers Drilling and Accessory Functions |

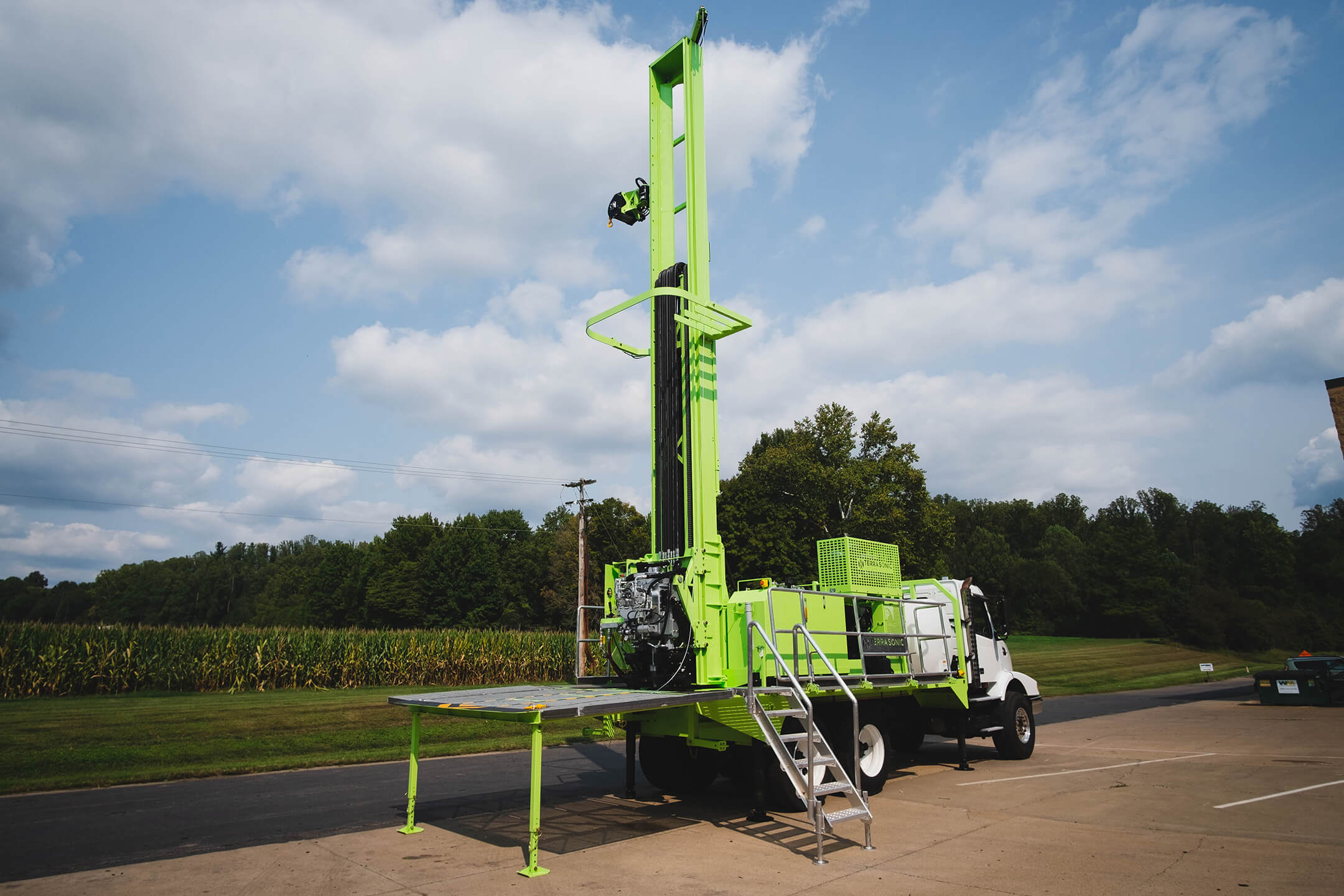

| Mast Flexibility | 36’ 10” Mast with 24’ 5” of Head Travel; Mast Accommodates 20’ Sections of Tooling |
| Speed | 3 to 10 Times Faster vs. Conventional Drilling |
| Safety | Work Platform is Surrounded by Handrails; No Auger Flight Exposure |
| Sampling | Nearly Continuous In-Situ Core Samples |
Ultimate Power. Ultimate Mobility.
The Terra Sonic 150T Series Sonic Drill Rig combines the industry-leading power of the exclusive TSi Sonic Head Oscillator with all the advantages of a full-size, truck-mounted configuration. The TSi 150T is ideal for projects that require long-distance mobilization and frequent travel between jobsites.
Key Applications
- Environmental assessment and remediation
- Mineral and aggregates exploration
- Dam and levee investigations and rehabilitation
- Water resource profiling
- Construction dewatering projects
- Landfill investigations and expansions
- Geo-Construction projects
- Geotechnical studies
- Geothermal loop installation
