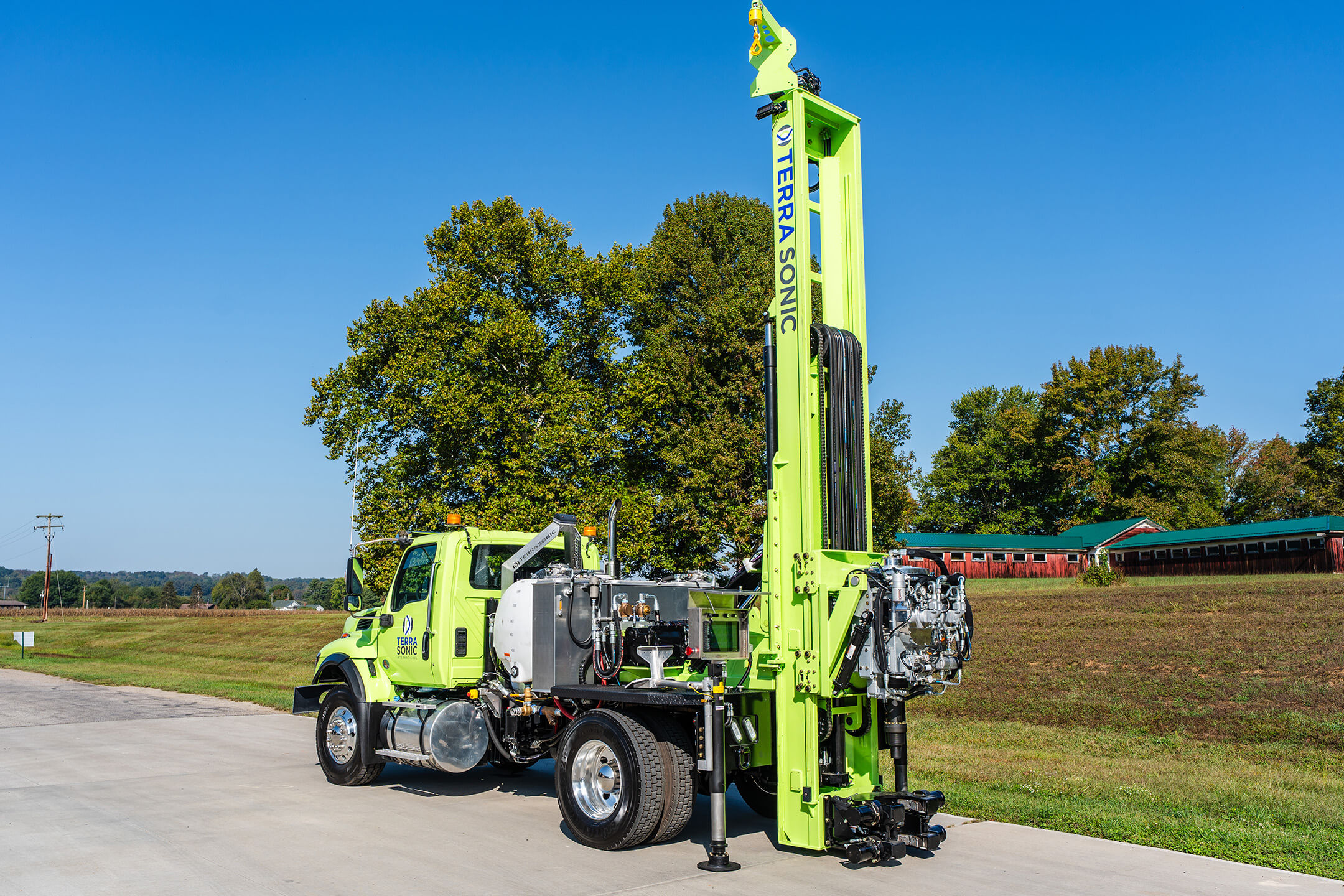

TSi 150CT Compact Truck-Mounted Sonic Drill Rig
| Specification | Value |
|---|---|
| Engine Type | 260 HP Tier 4 Diesel |
| Power | Up to 50,000 LBS of Resonant Sonic Energy |
| Drilling Depth | Up to 1,000 FT |
| Drilling Angle | Vertical to 45° |
| Down Force | 11,300 LBS |
| Pull Back Force | Up to 16,800 LBF |
| Stroke | 14’ 2” |
| Mast Flexibility | 19’ 1” Mast with 14’ 1” of Head Travel |
| Sampling | Nearly Continuous In-Situ Core Samples |
| Safety | Control Panel can be Used Remotely |
| Transport Dimensions | 8’3" W x 23′ L x 13′ H |
| Waste | IDW up to 80% Less v. Conventional Drilling |
Full-size Power & Performance

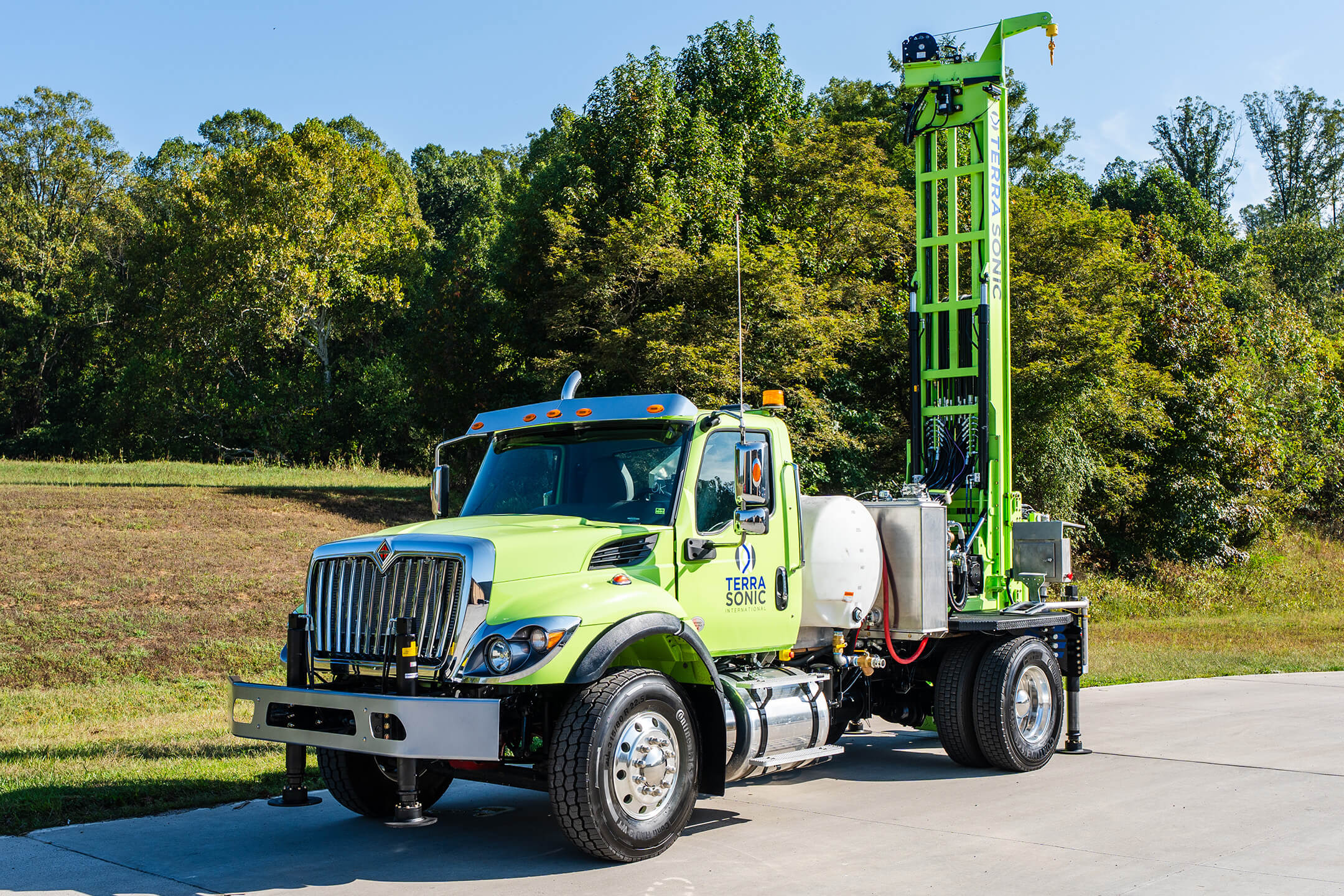

The Terra Sonic 150CT Compact Truck Mounted Sonic Drill Rig features the exclusive TSi 150 Sonic Head Oscillator, providing the world’s most efficient use of sonic drilling power. The Sonic drill is mounted on a smaller truck frame, which is ideal for areas where space is limited.
Key Applications
- Environmental assessment and remediation
- Mineral and aggregates exploration
- Dam and levee investigations and rehabilitation
- Water resource profiling
- Construction dewatering projects
- Landfill investigations and expansions
- Geo-Construction projects
- Geotechnical studies
- Geothermal loop installation
