TSi 150CC Compact Crawler-Mounted Sonic Drill Rig
| Specification | Value |
|---|---|
| Engine Type | 225 HP Tier 4 Final Diesel |
| Power | Up to 50,000 LBS of Resonant Sonic Energy |
| Drilling Depth | Up to 1,000 FT |
| Drilling Range | From 3” to 12” Diameter |
| Drilling Angle | Vertical to 45º |
| Stroke Length | 14’ 2” |
| Sampling | Nearly Continuous In-Situ Core Samples |
| Transport Dimensions | 7’ 3” W x 21’ 4” L x 7’9” H |
| Portability | Fits into Standard Shipping Container |
| Speed | 3 to 10 Times Faster vs. Conventional Drilling |
| Waste | IDW up to 80% Less v. Conventional Drilling |
| Safety | No Auger Flight Exposure; Protective Fold-down Work Platform |
| Accuracy | Straight Holes with no Lateral Movement of Drill String |
| Indoor Compatibility | 14’ 6” Mast for Low-clearance Applications |
Maximum power. Minimum footprint.

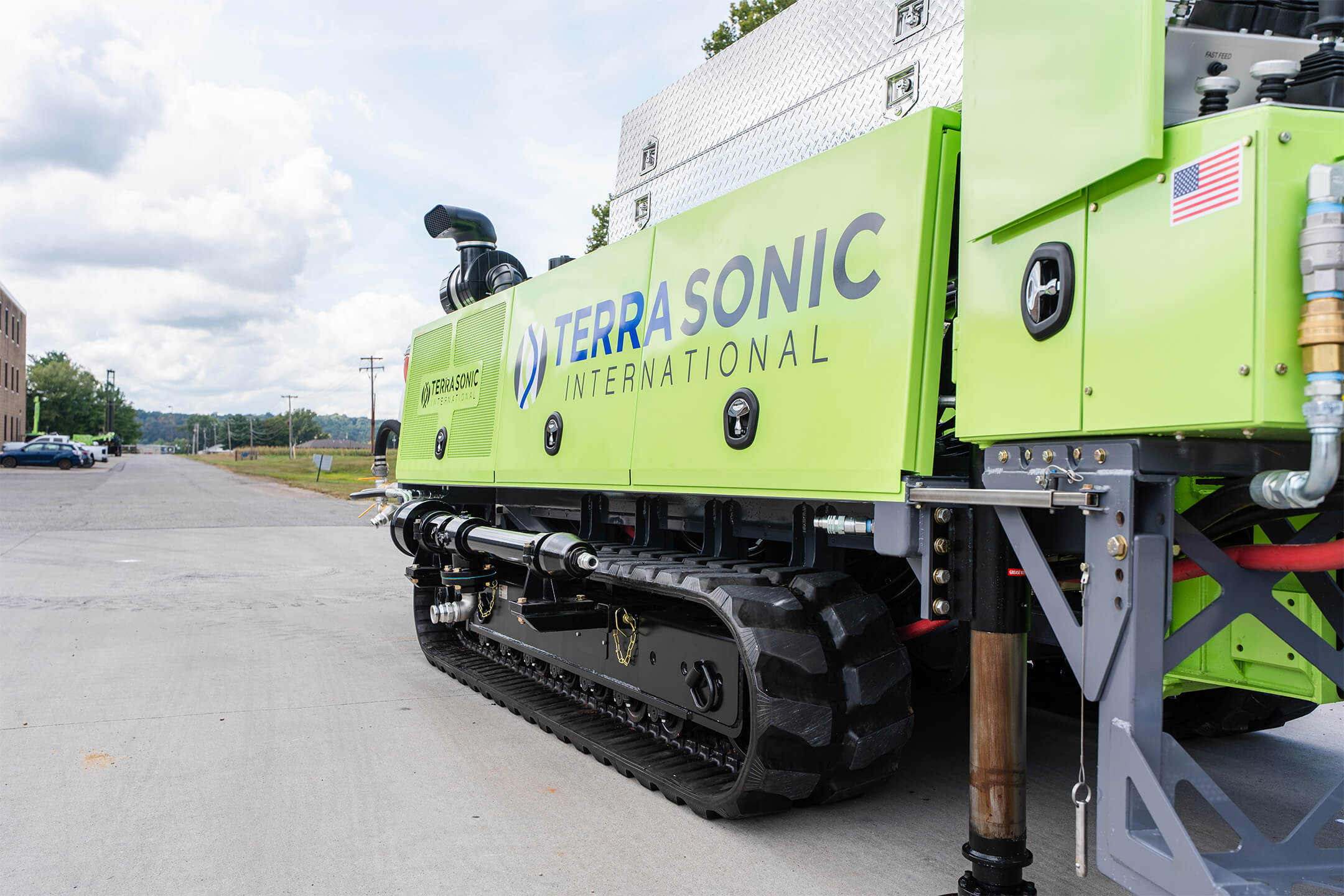

The TSi 150CC Series Sonic Drill Rig is the most powerful sonic rig on a small platform in the world. It brings full Terra Sonic power and innovation to a compact footprint for remarkable flexibility and versatility. The track-mounted 150CC easily reaches limited-access areas and tough terrain. Remote control tracking makes the 150CC ideal for use in tighter spaces.
Key Applications
- Environmental assessment and remediation
- Mineral and aggregates exploration
- Dam and levee investigations and rehabilitation
- Water resource profiling
- Construction dewatering projects
- Landfill investigations and expansions
- Geo-Construction projects
- Geotechnical studies
- Geothermal loop installation
