TSi 150CC-E CE-Certified Compact Crawler-Mounted Sonic Drill Rig
| Specification | Value |
|---|---|
| Engine Type | 245HP Stage V Diesel |
| Power | Up to 50,000 LBS of Resonant Sonic Energy |

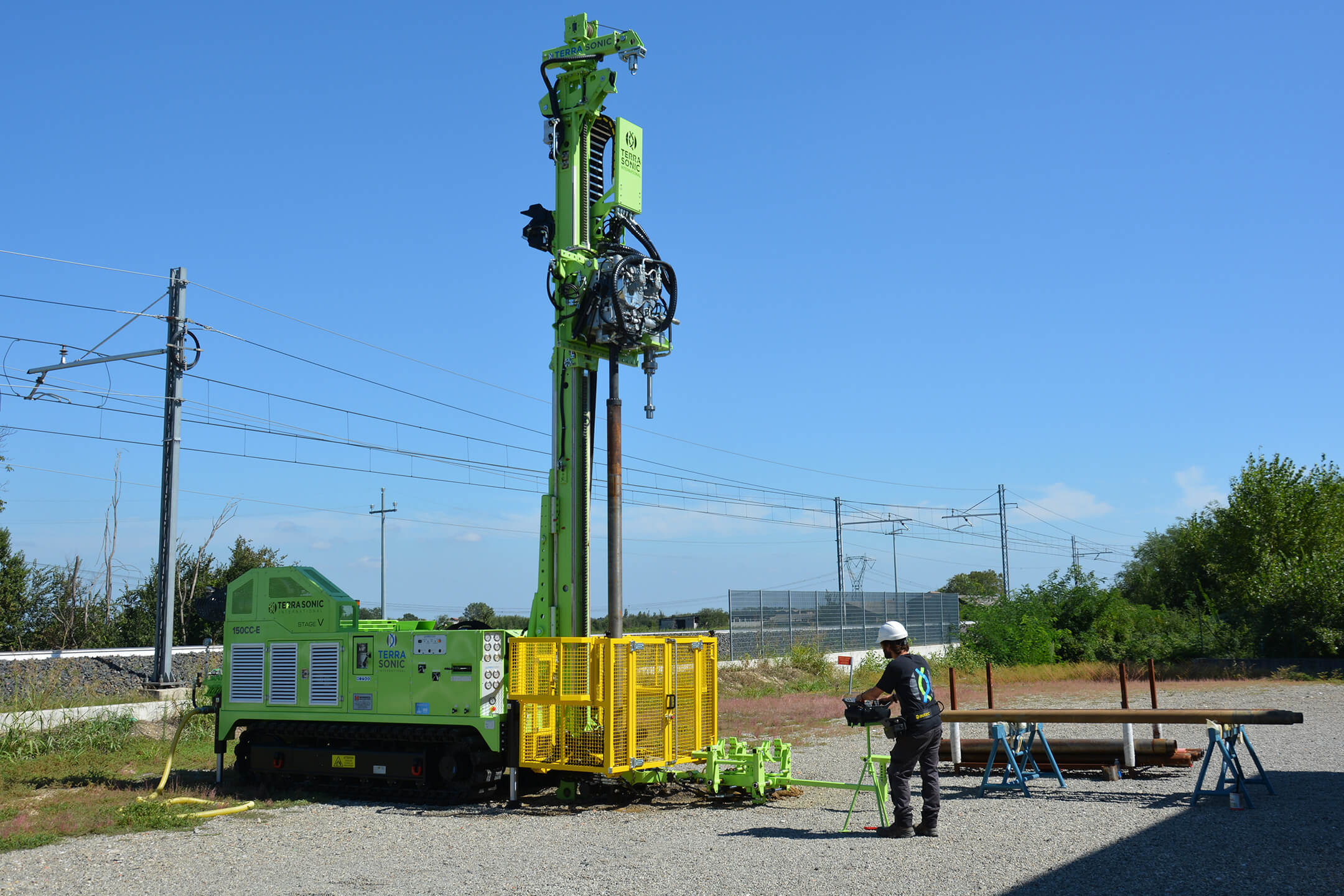

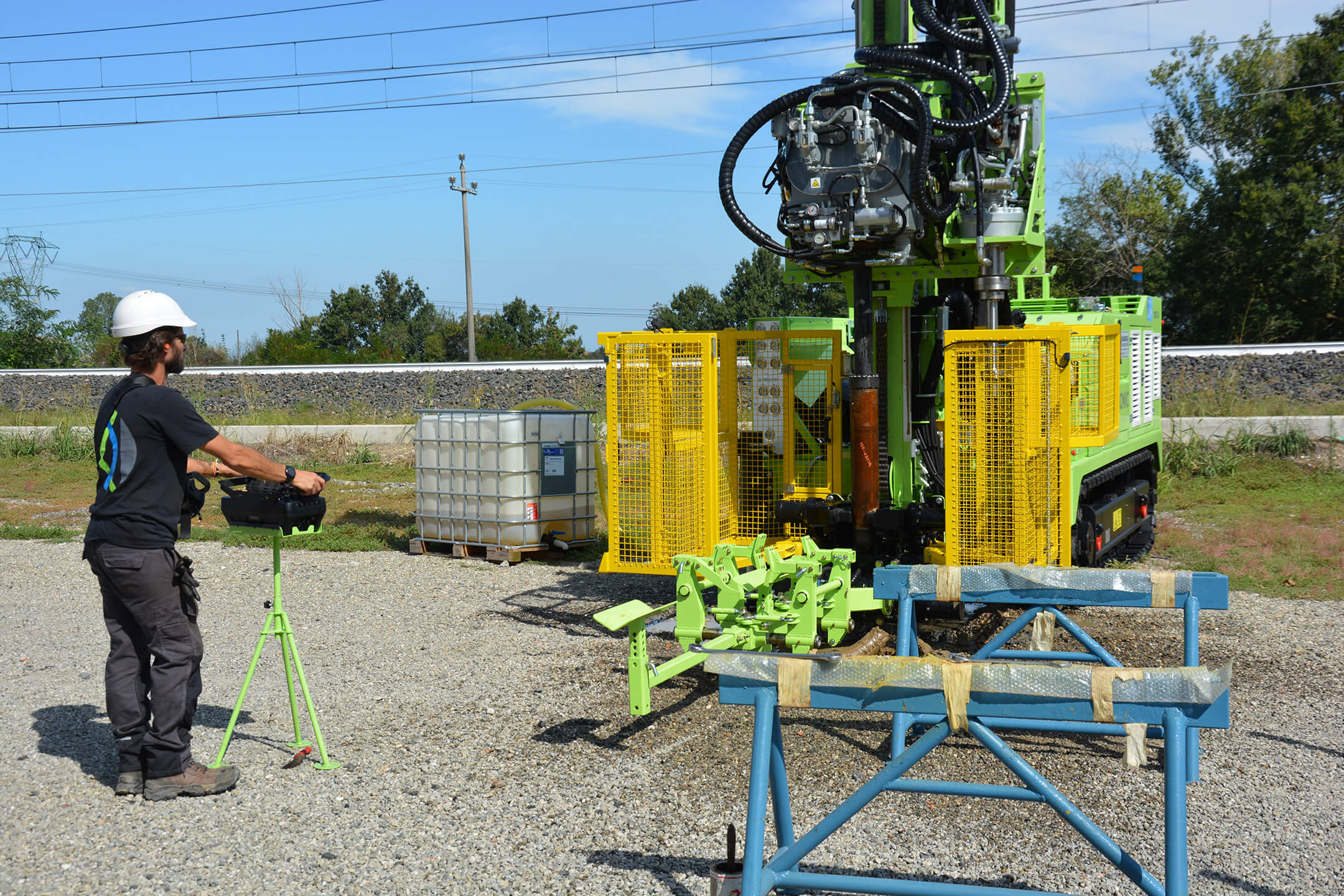

| Control | Remote Control Tracking is Ideal for Use in Tight Spaces |
| Drilling Depth | Up to 1,000 FT |
| Drilling Angle | 45° to 90° |
| Pull Back Force | 17,985 LBF |
| Stroke | 14’5” |
| Safety | Rotation Guard with Interlocking System and Restricted Operating Mode |
| Transport Dimensions | 6’7" W x 28’8" L x 10’10") |
| Compact Footprint | Ideal for Accessing Tight Areas |
| Compact Mast | Optional 14’ Mast is Ideal for Indoor and Low-clearance Applications |
| Waste | IDW up to 80% Less v. Conventional Drilling |
| Speed | 3 to 10 Times Faster than Traditional Drilling |
| Accuracy | Straight Holes with no Lateral Movement of Drill String |
Full Power without the Full Footprint

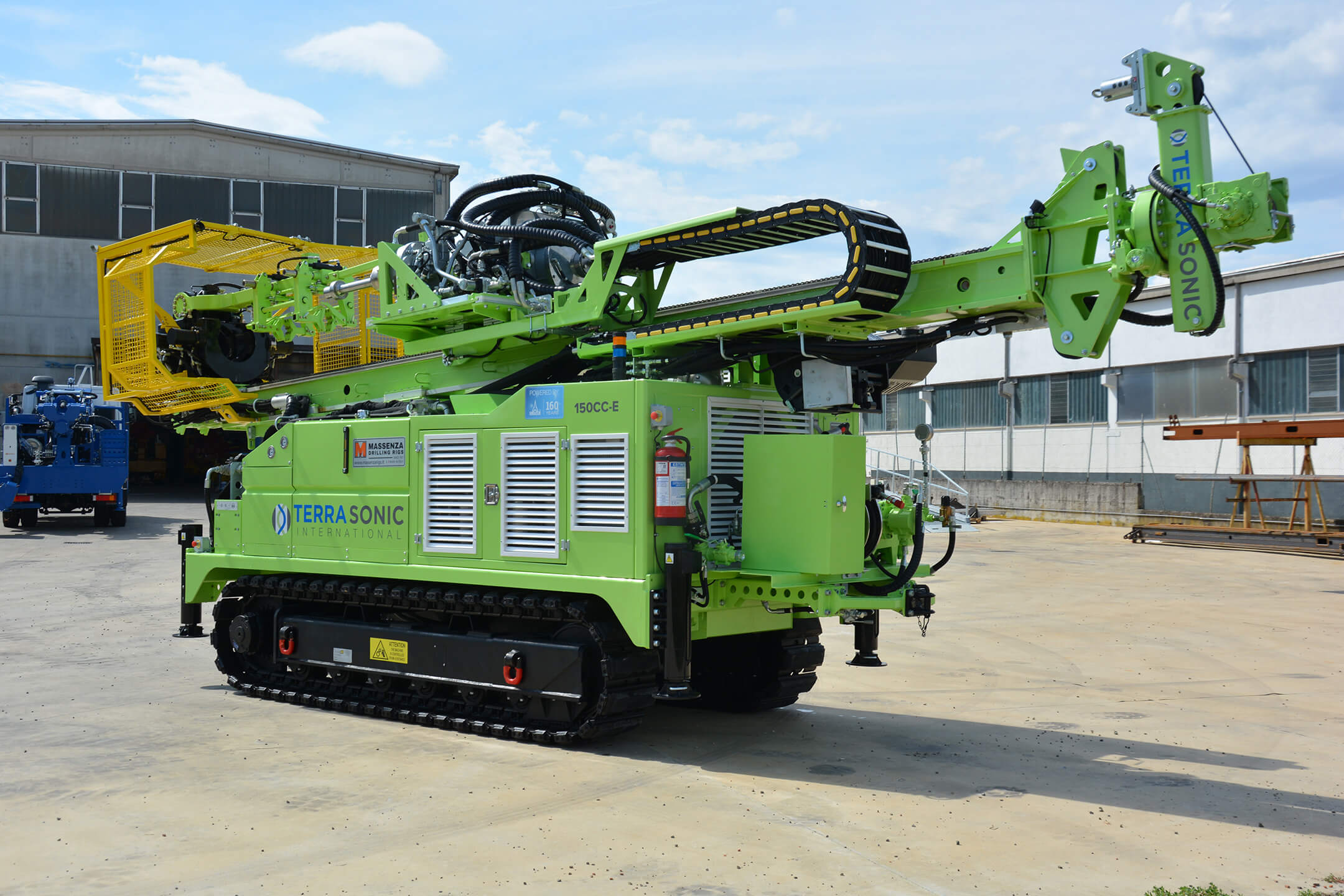

The TSi 150CC-e Sonic Drill Rig brings full Terra Sonic power and innovation to a compact platform for unmatched versatility. The CE-certified track-mounted 150CC-e easily reaches difficult-to-access locations and tackles tough terrain. Remote control tracking means the 150CC-e is ideal for use in tight spaces.
Key Applications
- Environmental assessment and remediation
- Mineral and aggregates exploration
- Dam and levee investigations and rehabilitation
- Water resource profiling
- Construction dewatering projects
- Landfill investigations and expansions
- Geo-Construction projects
- Geotechnical studies
- Geothermal loop installation
