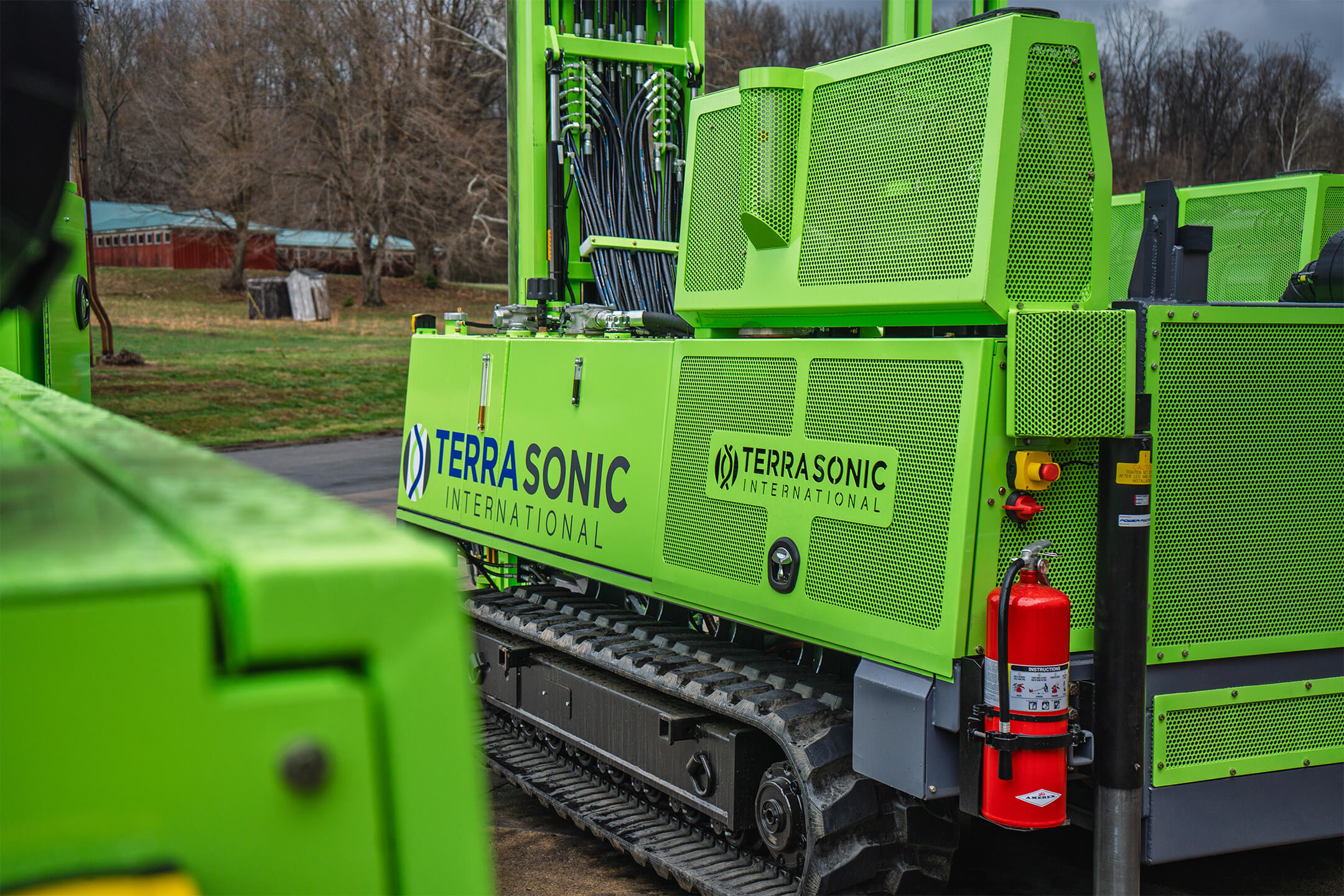

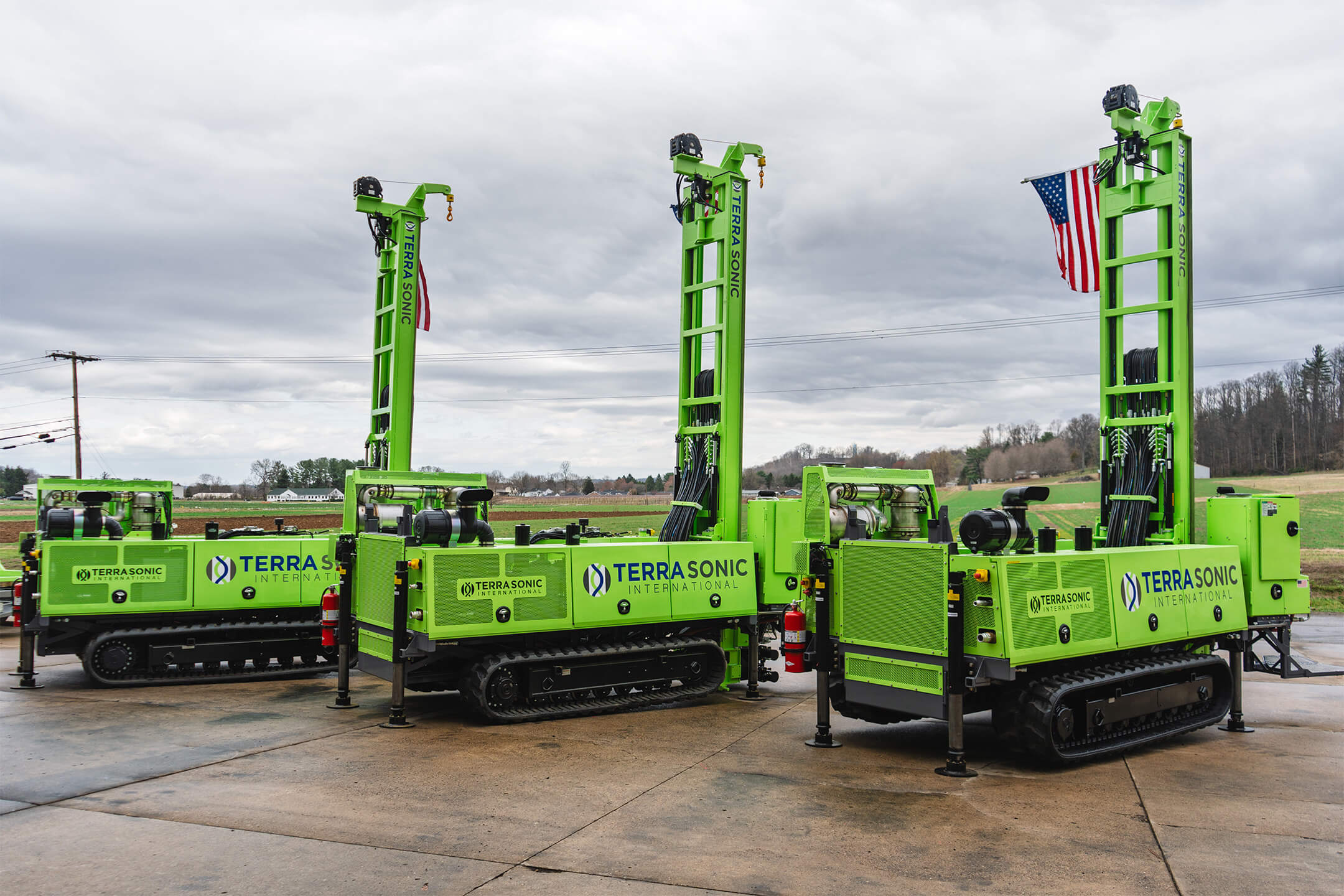

TSi 150C Crawler-Mounted Sonic Drill Rig
| Specification | Value |
|---|---|
| Engine Type | 278 HP Tier 4 Diesel |
| Power | Up to 50,000 LBS of Resonant Sonic Energy |
| Oscillator Frequency | 0 to 50 HZ |
| Drilling Depth | Up to 1,000 FT |
| Pull Back Force | 22,000 LBF |
| Drilling Angle | Vertical to 55º |

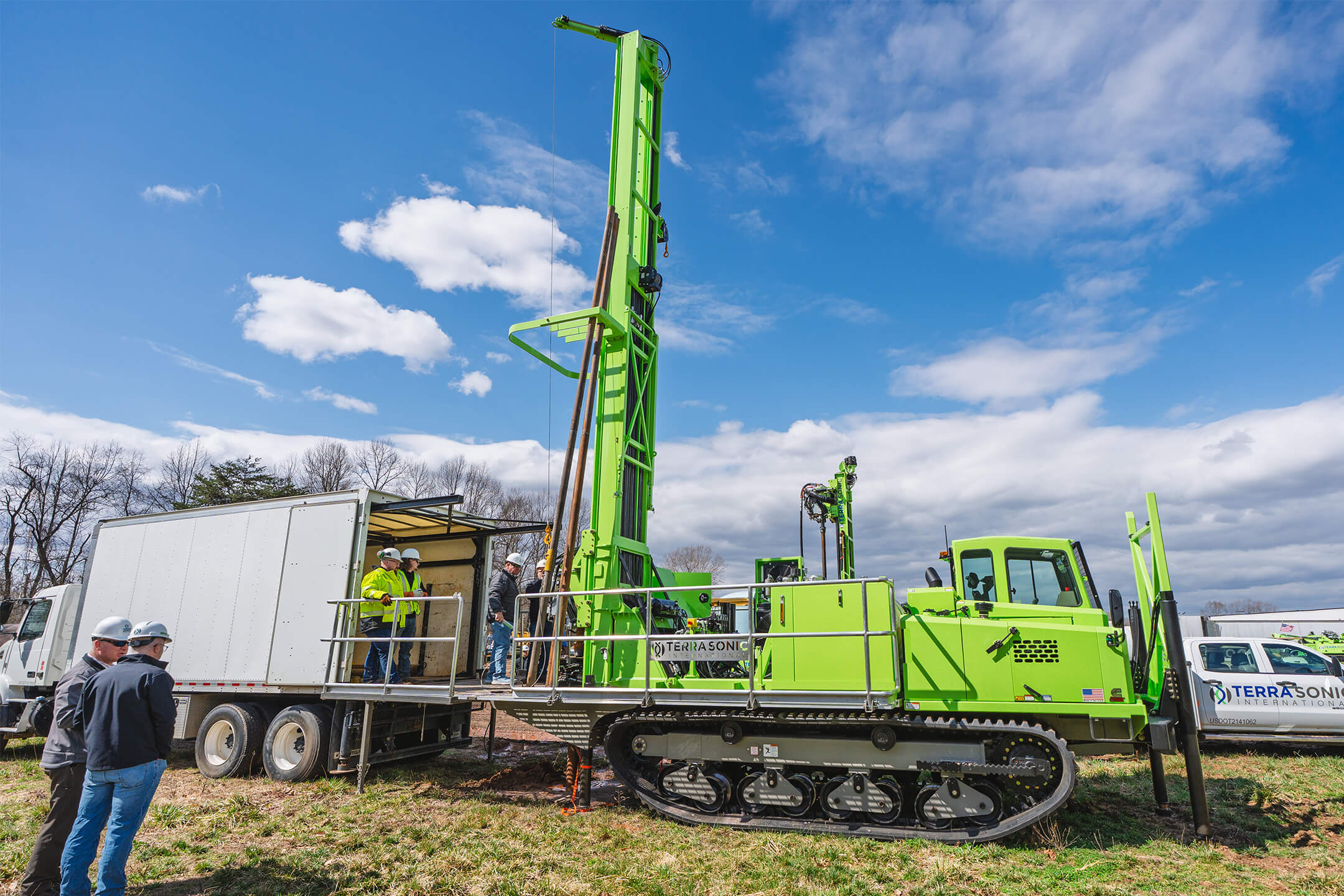

| Mast Flexibility | 36’1” Mast with 24’ 5” of Head Travel |
| Stroke | 24’ 5” |
| Sampling | Nearly Continuous In-Situ Core Samples |
| Transport Dimensions | 8’6″ W x 33’11″ L x 11’5″ H |
| Rotation Speed | 0 to 80 RPM |

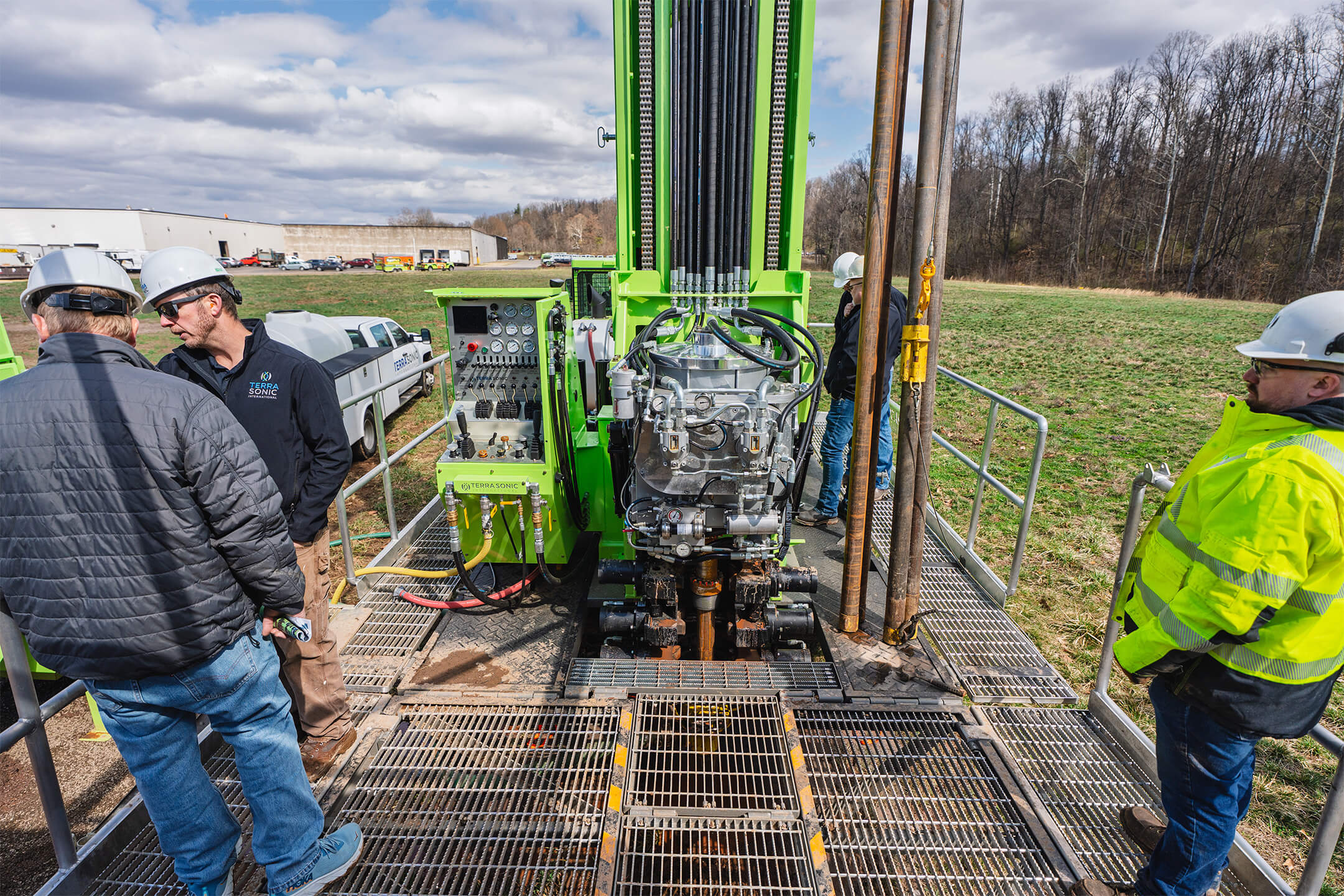

| Safety | Extra Large Protective Work Platform and Fold-down Walkways; No Auger Flight Exposure |

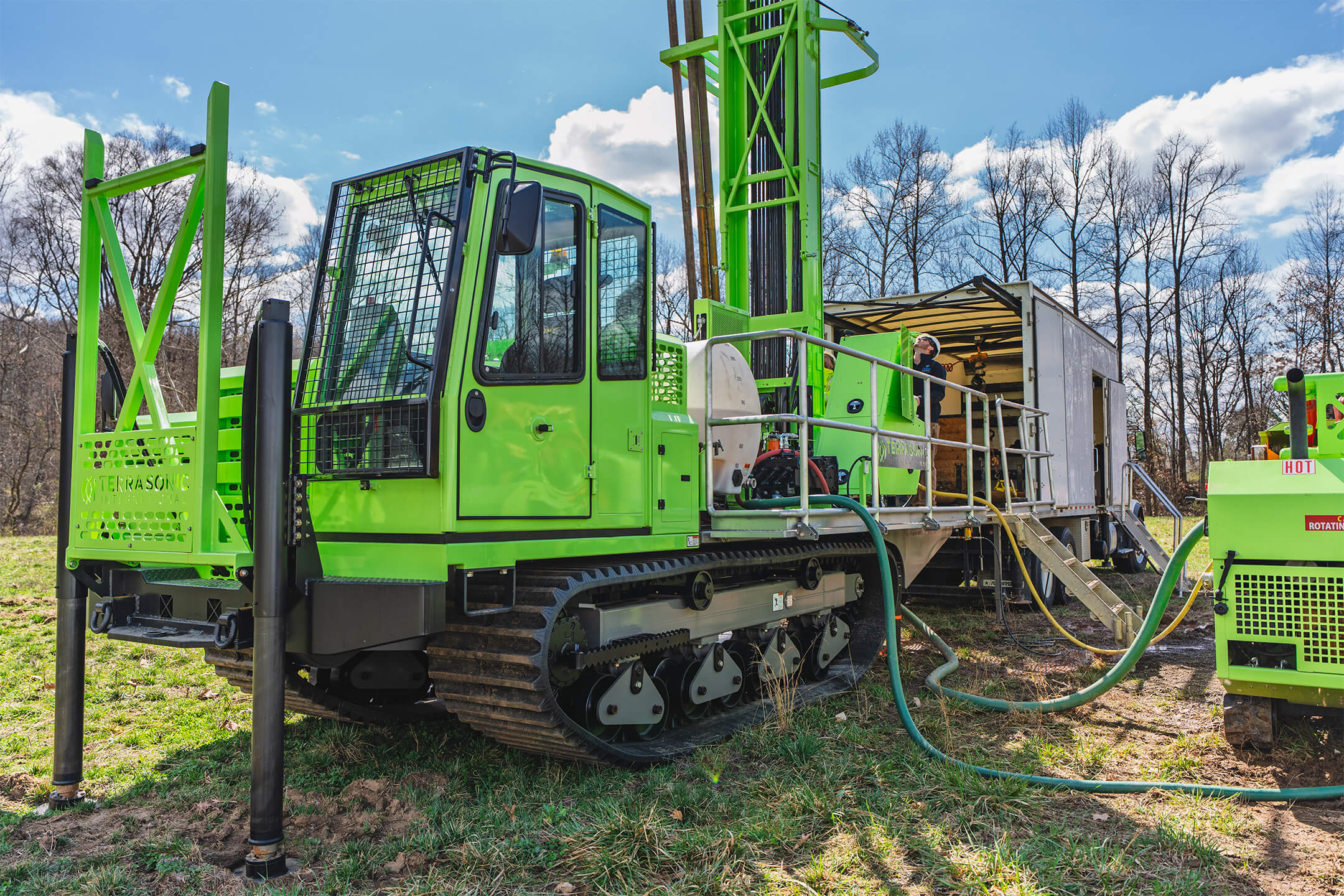

| Crawler Capability | Full Rotational Drilling |
| Track Capability | Easily Reaches Drilling Sites in any Type of Terrain |
Full-size Power & Performance
The Terra Sonic 150C Series Sonic Drill Rig sets the standard in sonic drilling. No other sonic drill rig can get a sonic drilling project completed faster, safer, or more efficiently. The full-size chassis and versatile crawler tracks allow it to trek long distances over difficult terrain.
Key Applications
- Environmental assessment and remediation
- Mineral and aggregates exploration
- Dam and levee investigations and rehabilitation
- Water resource profiling
- Construction dewatering projects
- Landfill investigations and expansions
- Geo-Construction projects
- Geotechnical studies
- Geothermal loop installation
