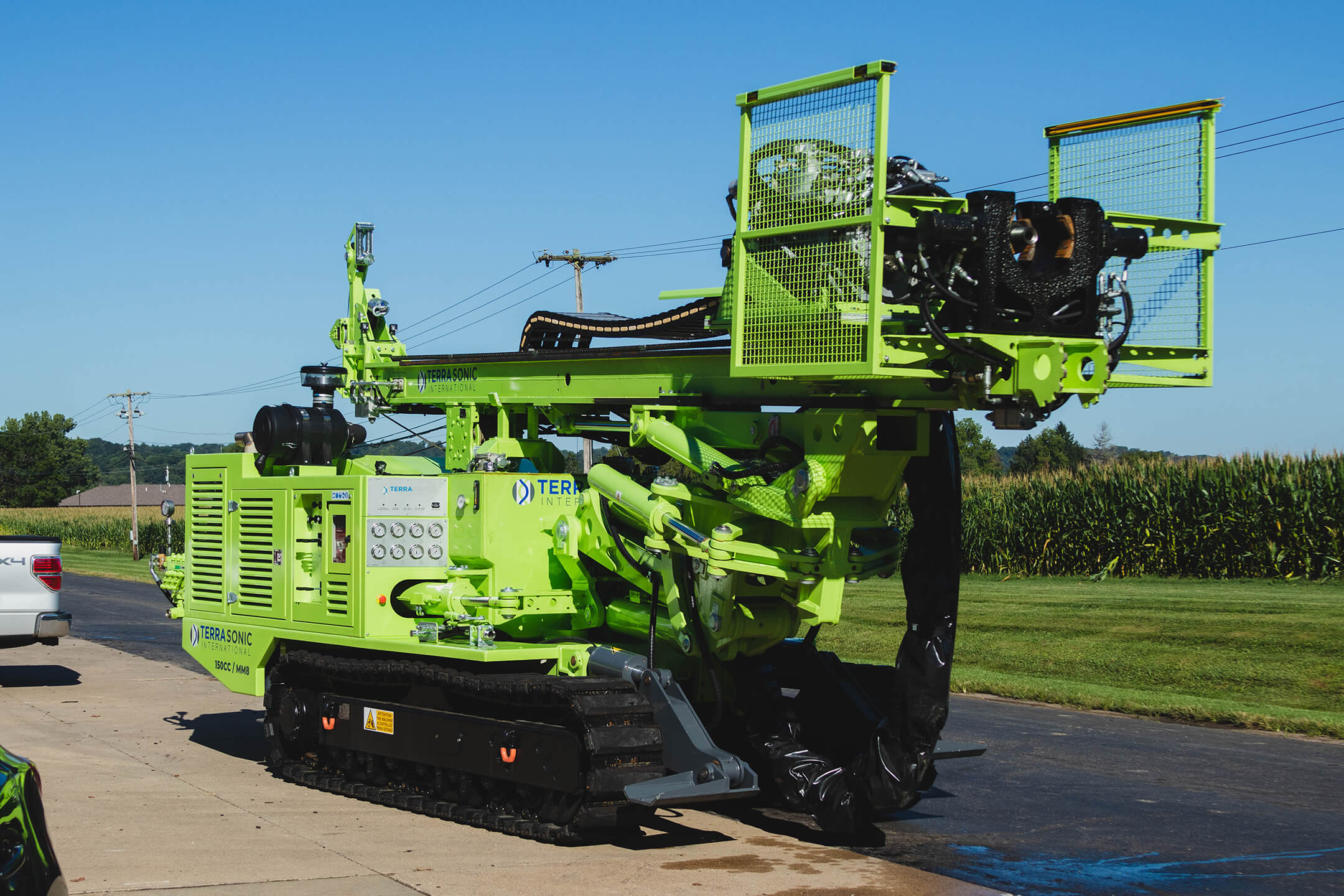

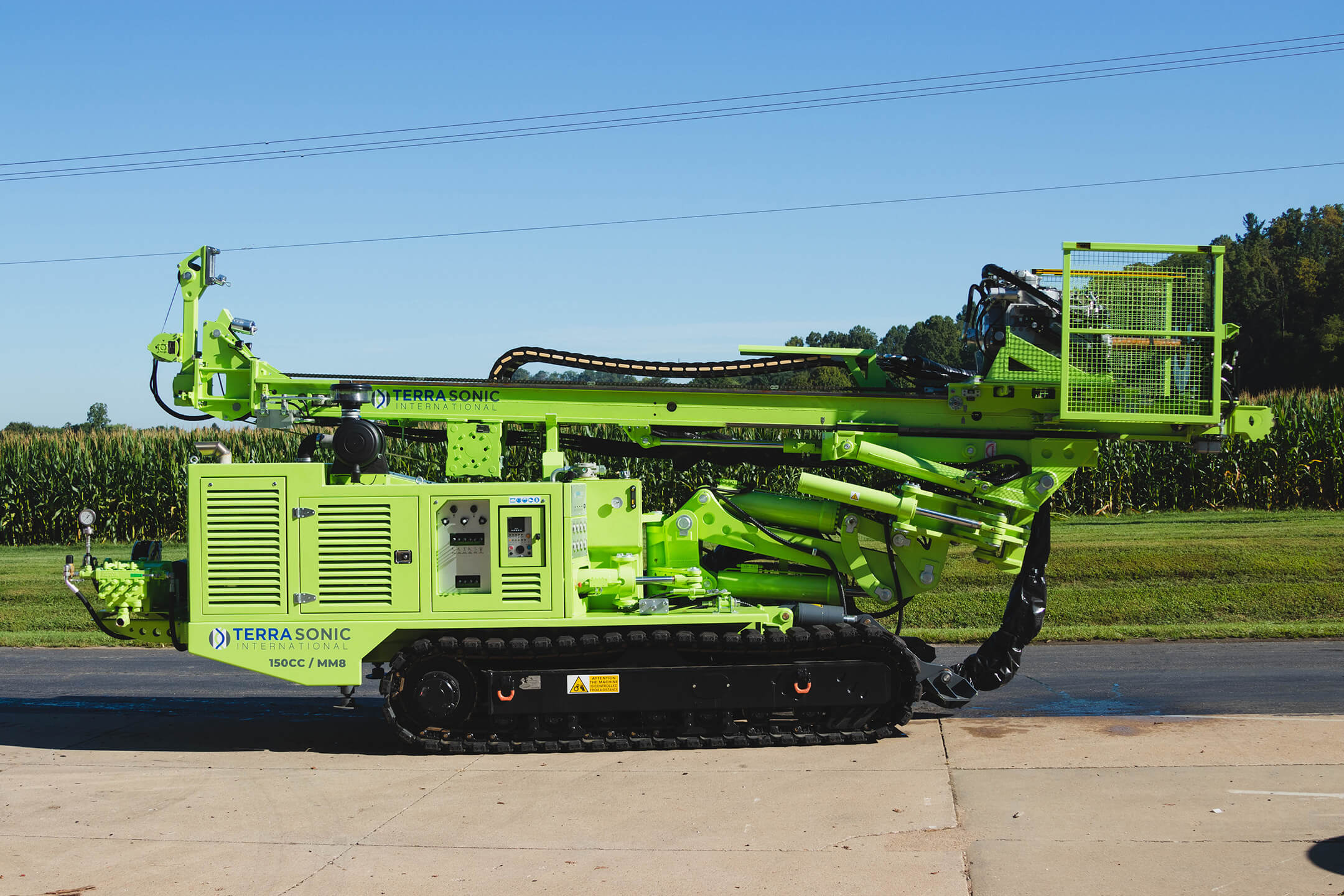

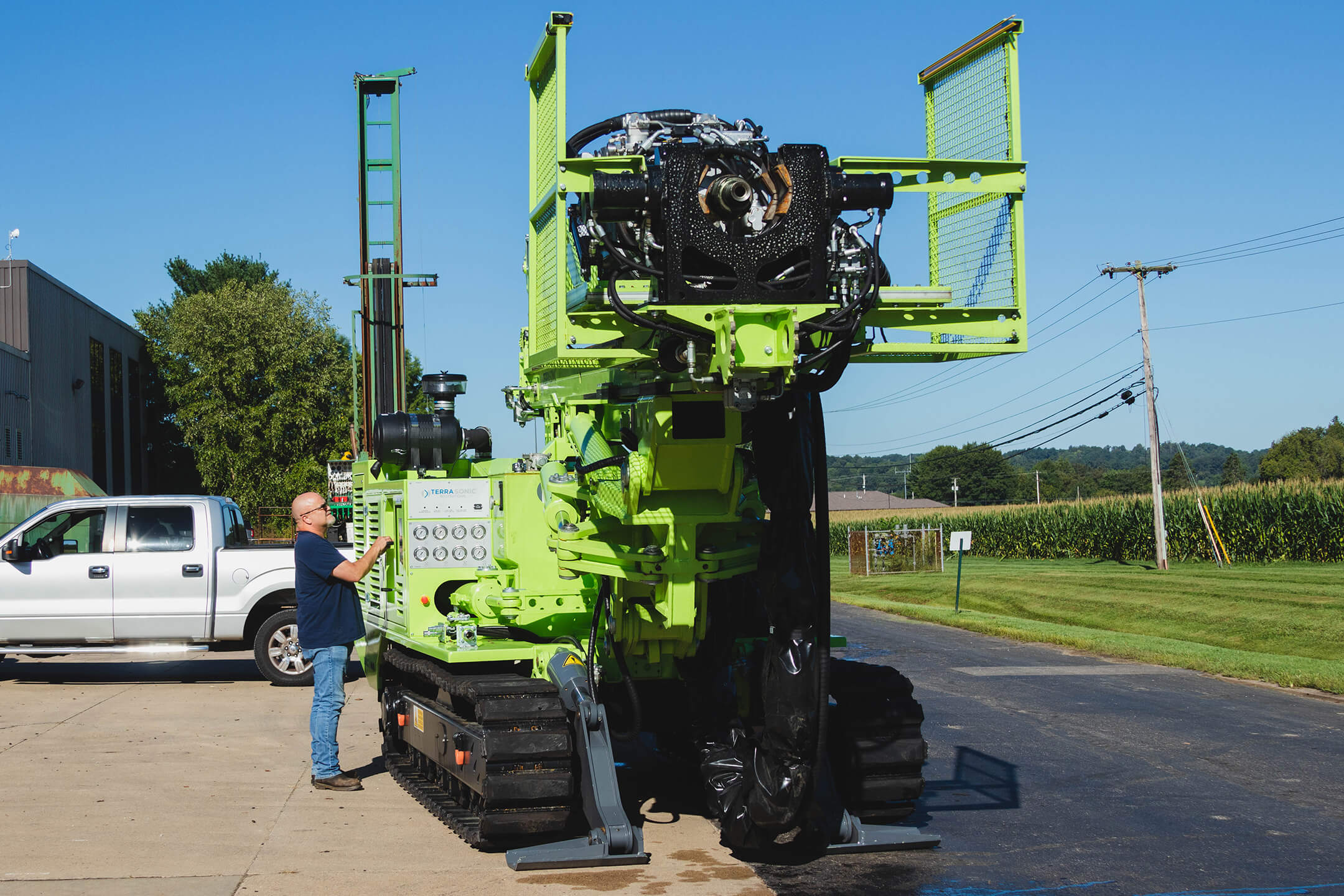

TSi 150AC-8 Compact Crawler-Mounted Articulating Sonic Drill Rig
| Specification | Value |
|---|---|
| Engine Type | 245HP Stage V Diesel |
| Power | Up to 50,000 LBS of Resonant Sonic Energy |
| Drilling Depth | UP to 1,000 FT |
| Pull Back Force | 17,985 LBF |
| Down Force | 13,035 LBS |
| Speed | 3 to 5 Times Faster than Traditional Drilling |
| Stroke | 14’5” |

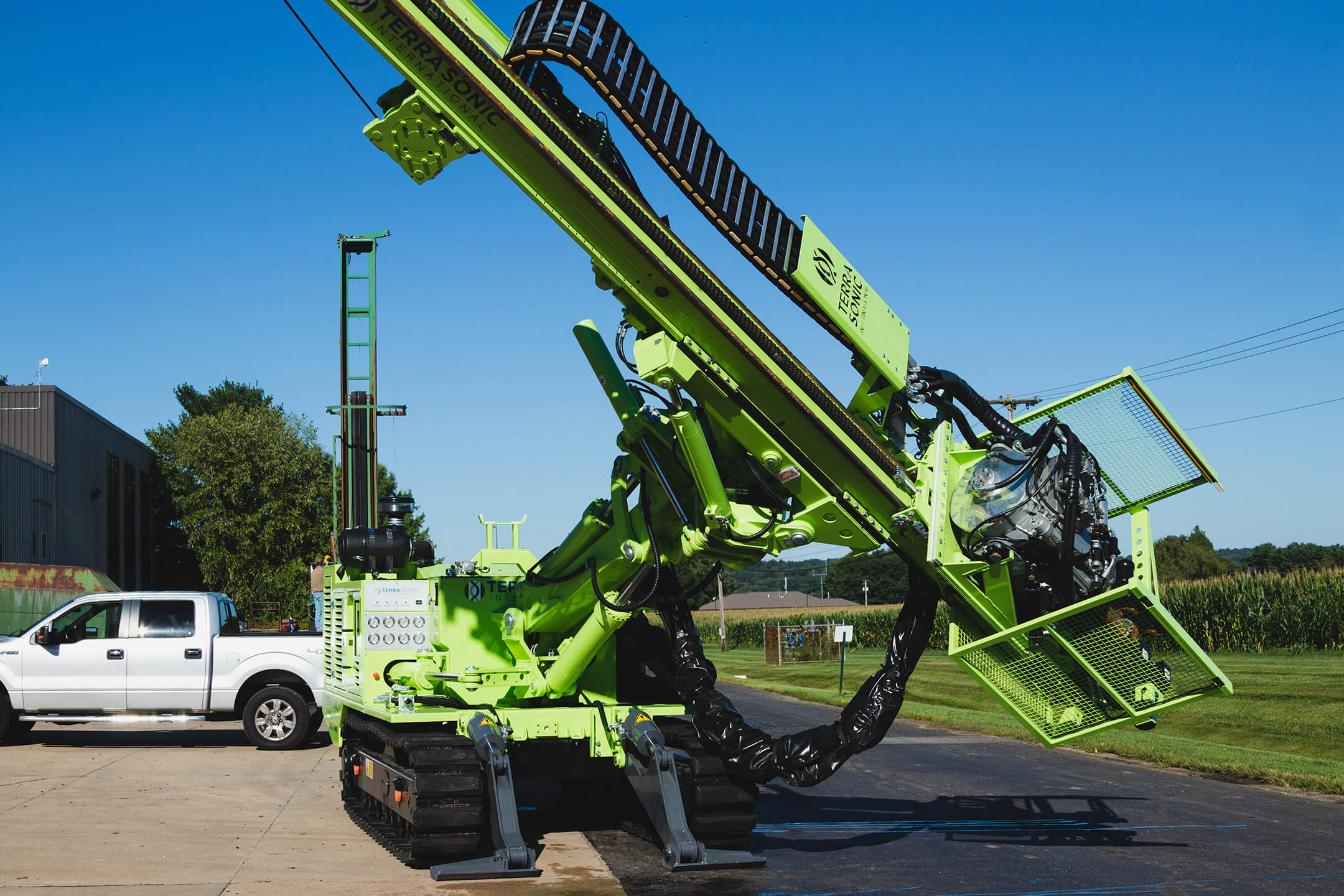

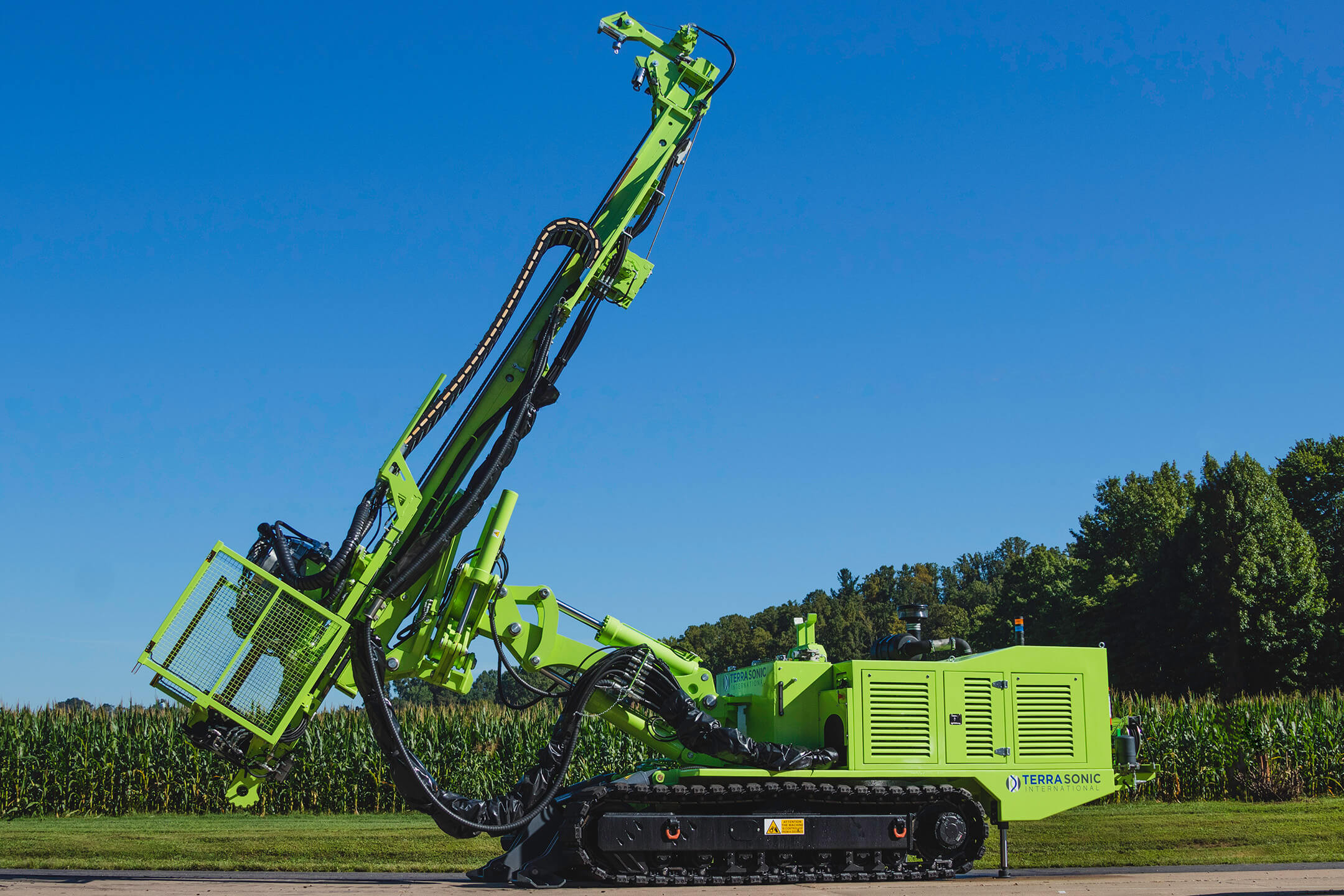

| Articulating Mast | Allows Drilling at Angles between Vertical and 130° in any Direction |

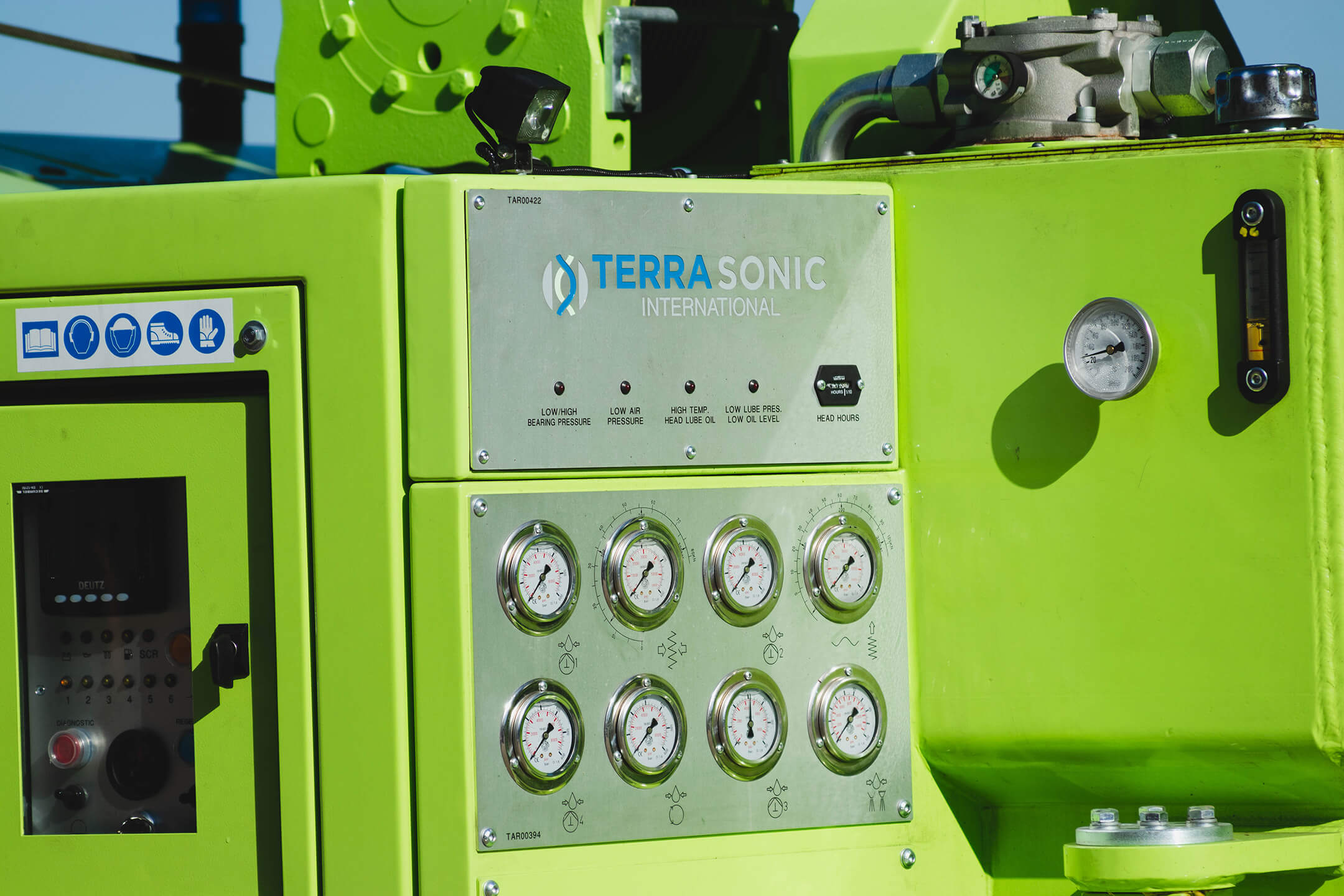

| Safety | Control Panel can be Tripod-mounted or used Remotely |
| Waste | IDW up to 80% Less v. Conventional Drilling |
| Transport Dimensions | 7’6" W x 28’5" L x 11’5" H |

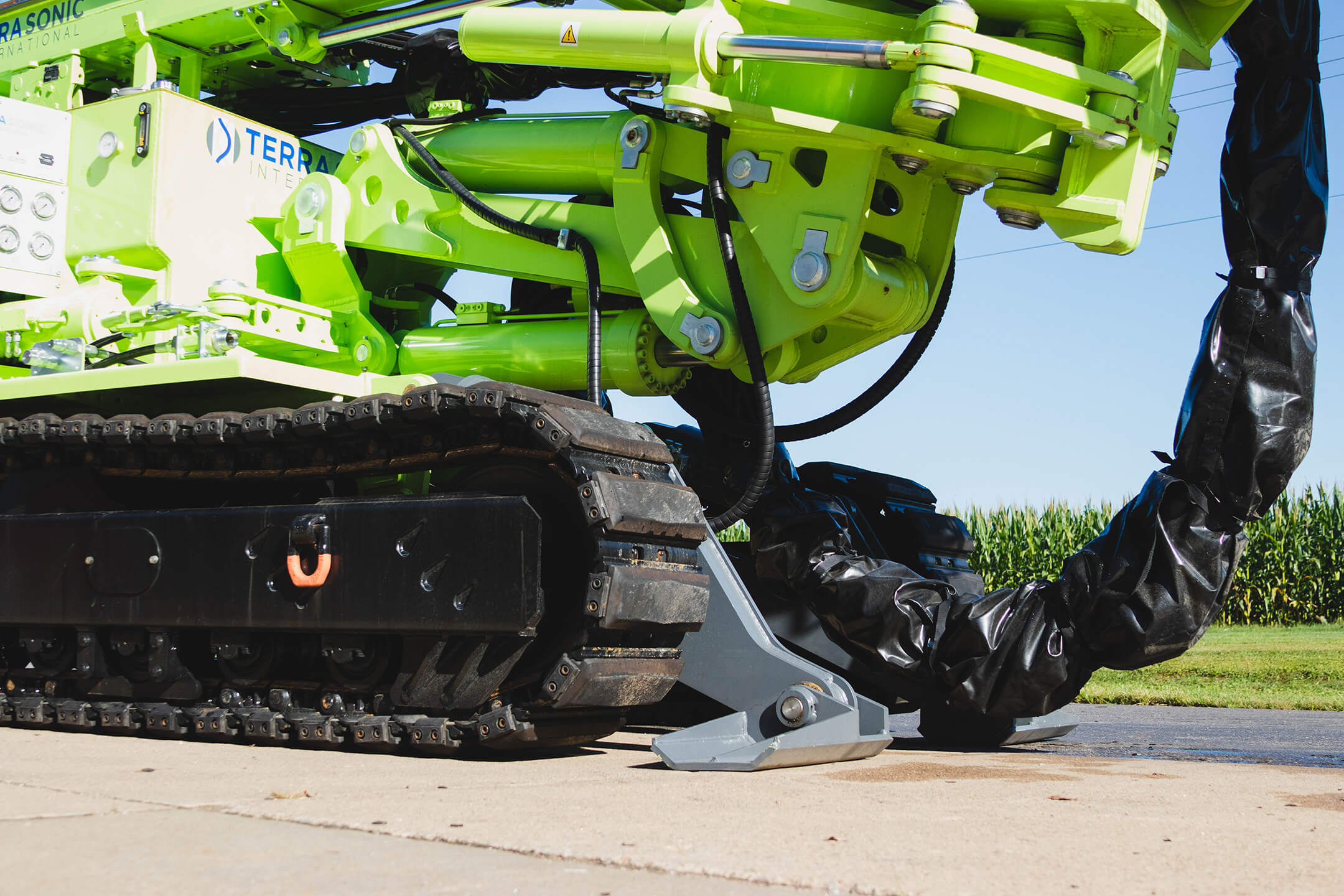

| Track Capability | Easily Reaches Drilling Sites in any Type of Terrain |
| Accuracy | Straight Holes with no Lateral Movement of Drill String |
Articulating Power & Performance
At the base of every TSi 150AC-8 Sonic Drill Rig is a remarkably durable Massenza MM8 platform engineered specifically to accommodate the TSi 150 Sonic Drill Head. The versatility of the articulating mast allows drilling at angles between vertical and 130 degrees in any direction.
Key Applications
- Geo-Construction
- Dam and Levee investigations and rehabilitation
- Earth Retention and ground Improvement
- Geotechnical studies
- Mine tailings investigations
