TSi 150 Series Sonic Drill Head

Specification Value
Oscillator Frequency 0 – 150 Hz
Oscillator Force Up to 50,000 lbs
Maximum Torque 4677 ft. lbs
Rotation Speed 0 to 80 rpm
Tilt-Out Near 90° allows drill steel to be threaded horizontally
Compatibility Universal with every Terra Sonic Drill Rig

The Core of the World's Leading Sonic Drilling System

The proprietary TSi 150 Series Sonic Drill Head is the heart of the top sonic drilling system, offering superior power, reliability, and efficiency. Refined over decades, it's integrated with Terra Sonic rigs and tooling for seamless performance and is compatible with all Terra Sonic drill rigs, truck or crawler mounted.

Key Benefits

  • Highest industry levels of sonic drilling power, reliability, and efficiency

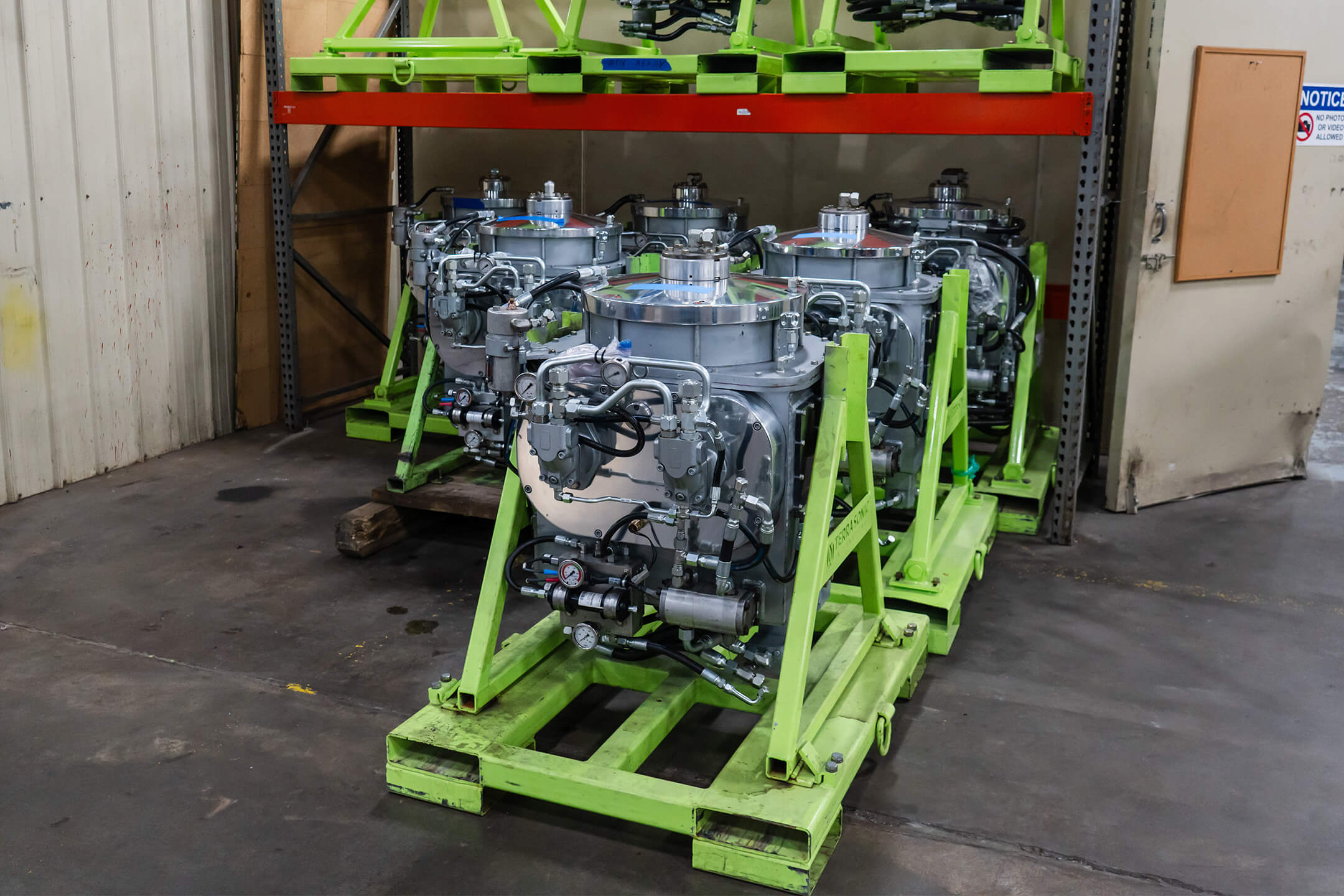

  • Reduces downtime via TEX Program: quick dispatch of replacement heads (often within a day) for field issues
  • TEX replacements are remanufactured, recertified, with new-head warranty, minimizing idle time and costs

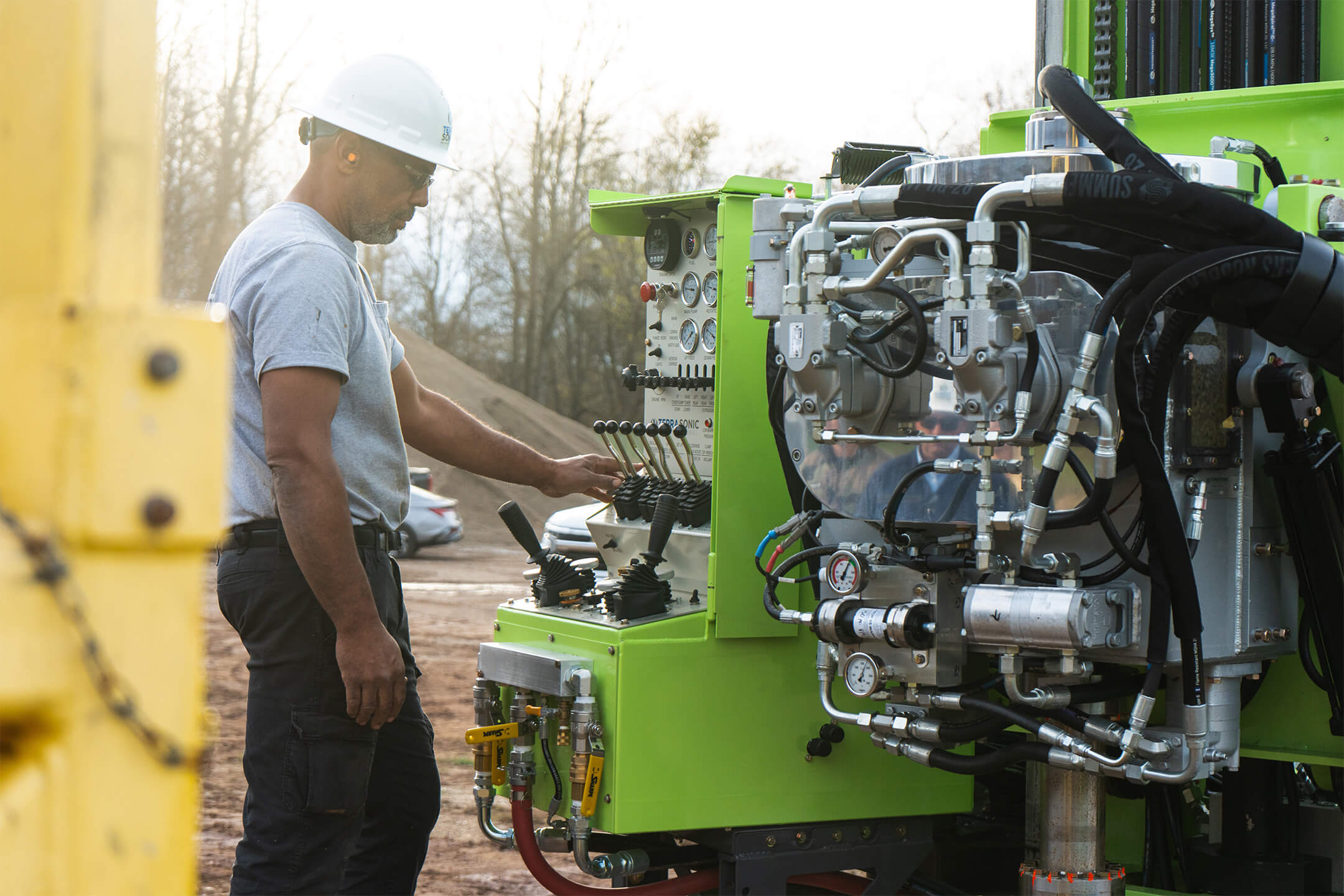

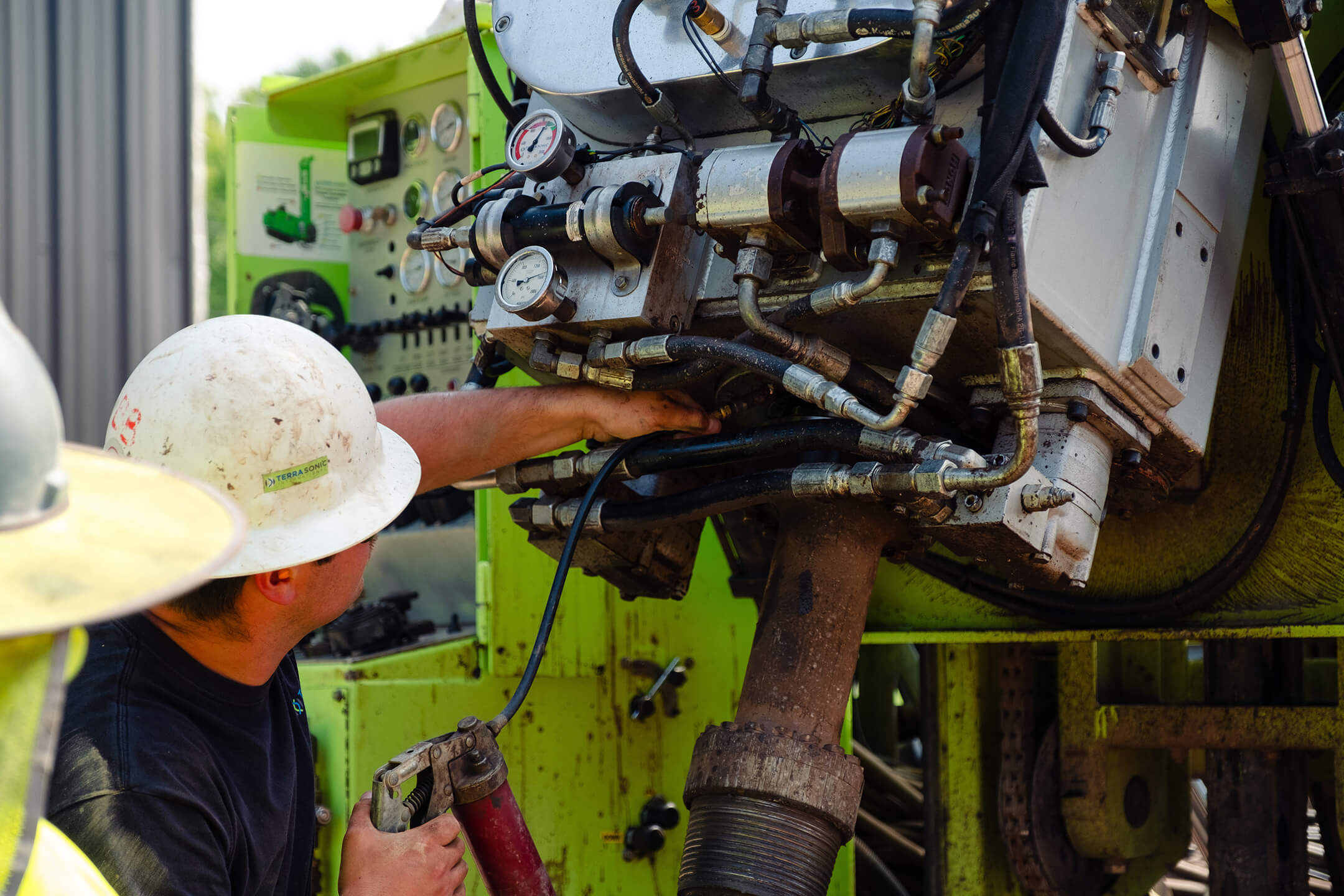

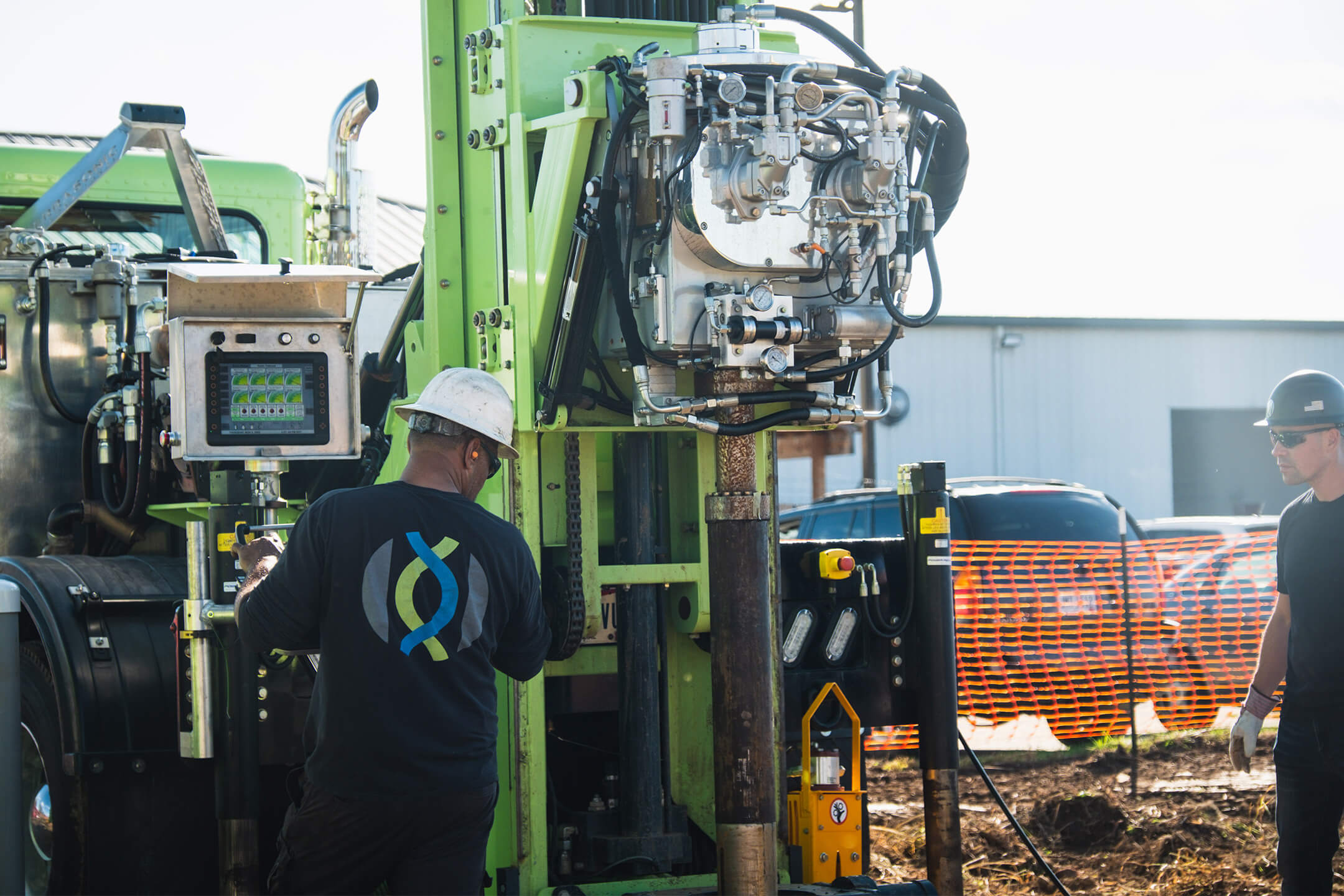

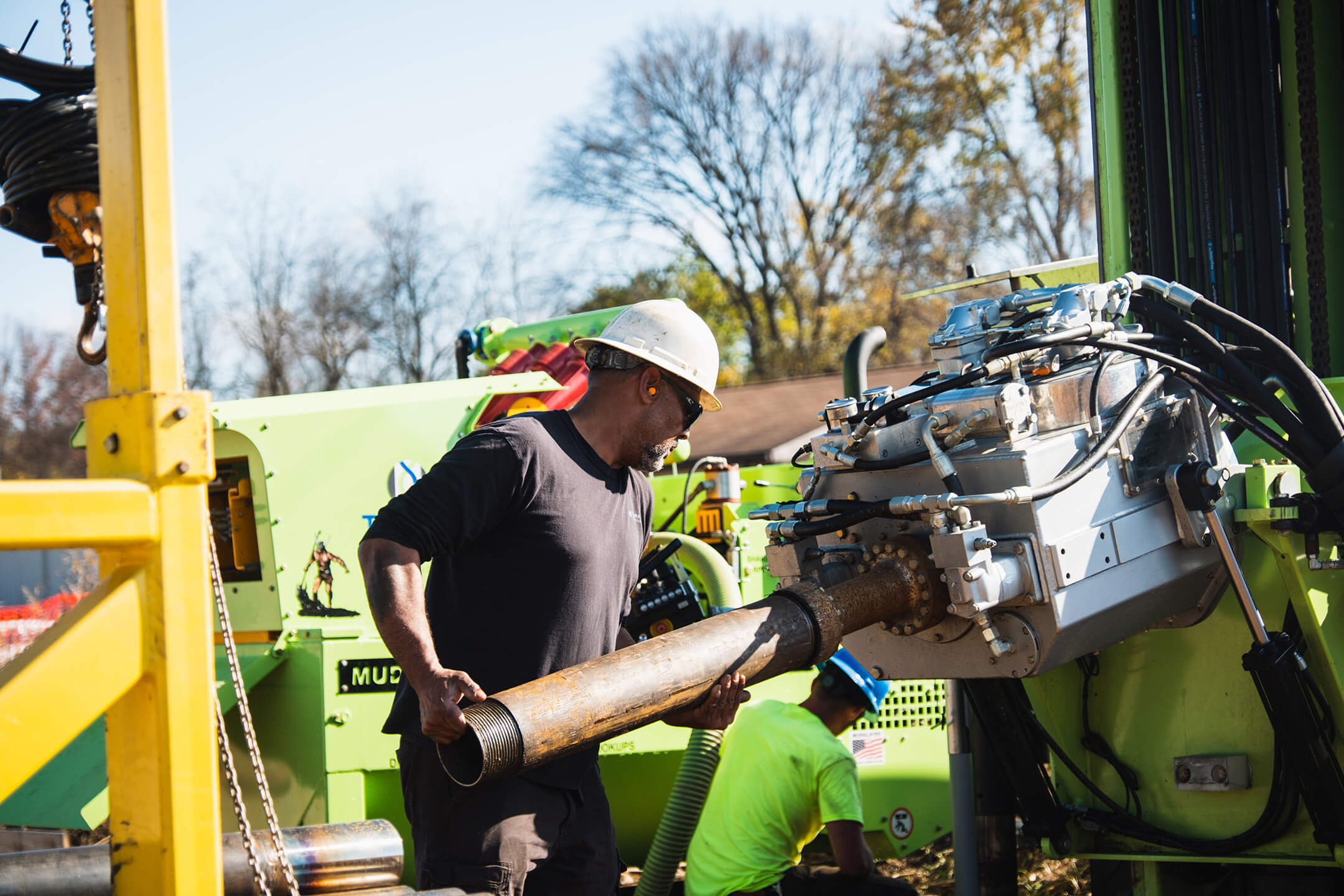

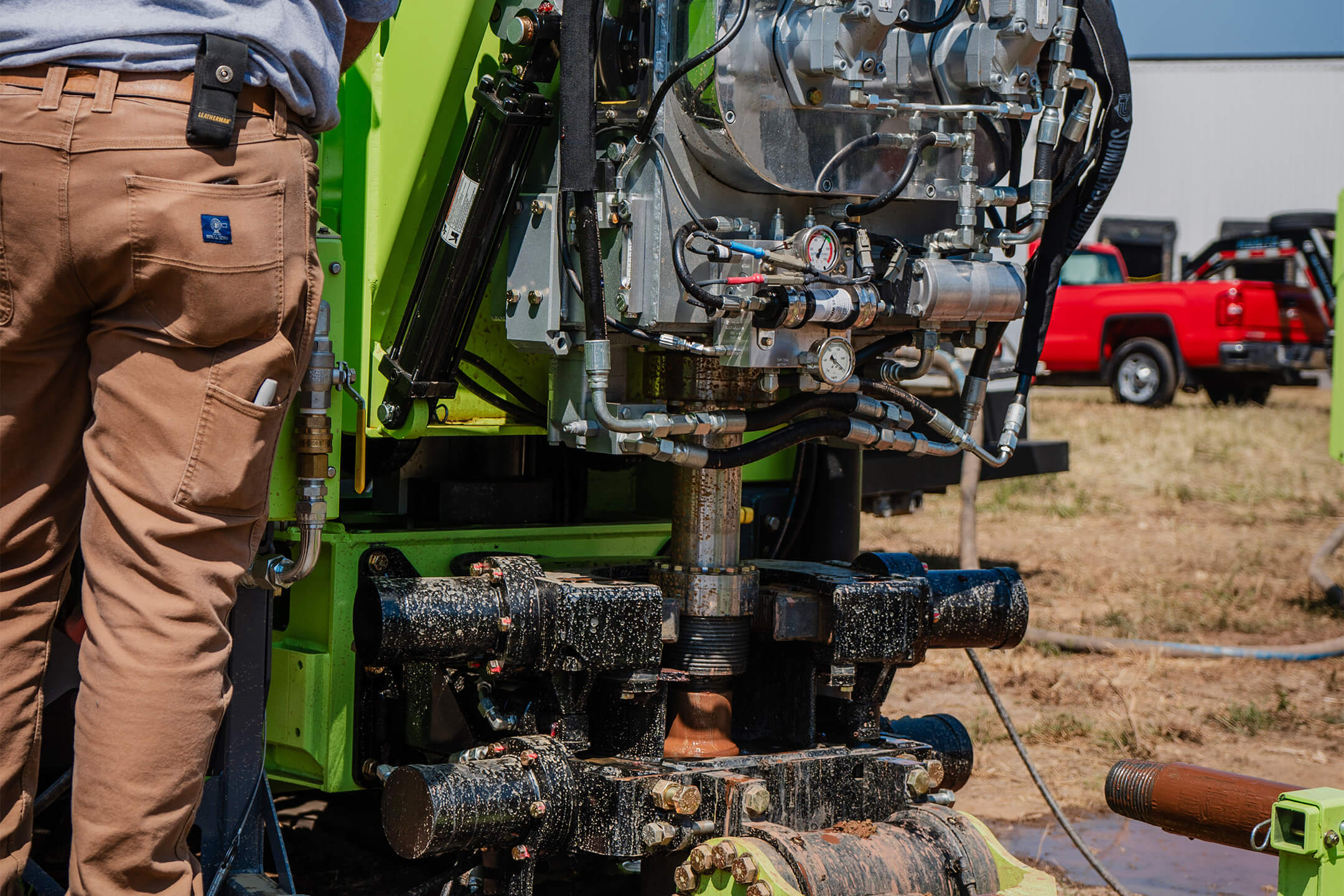

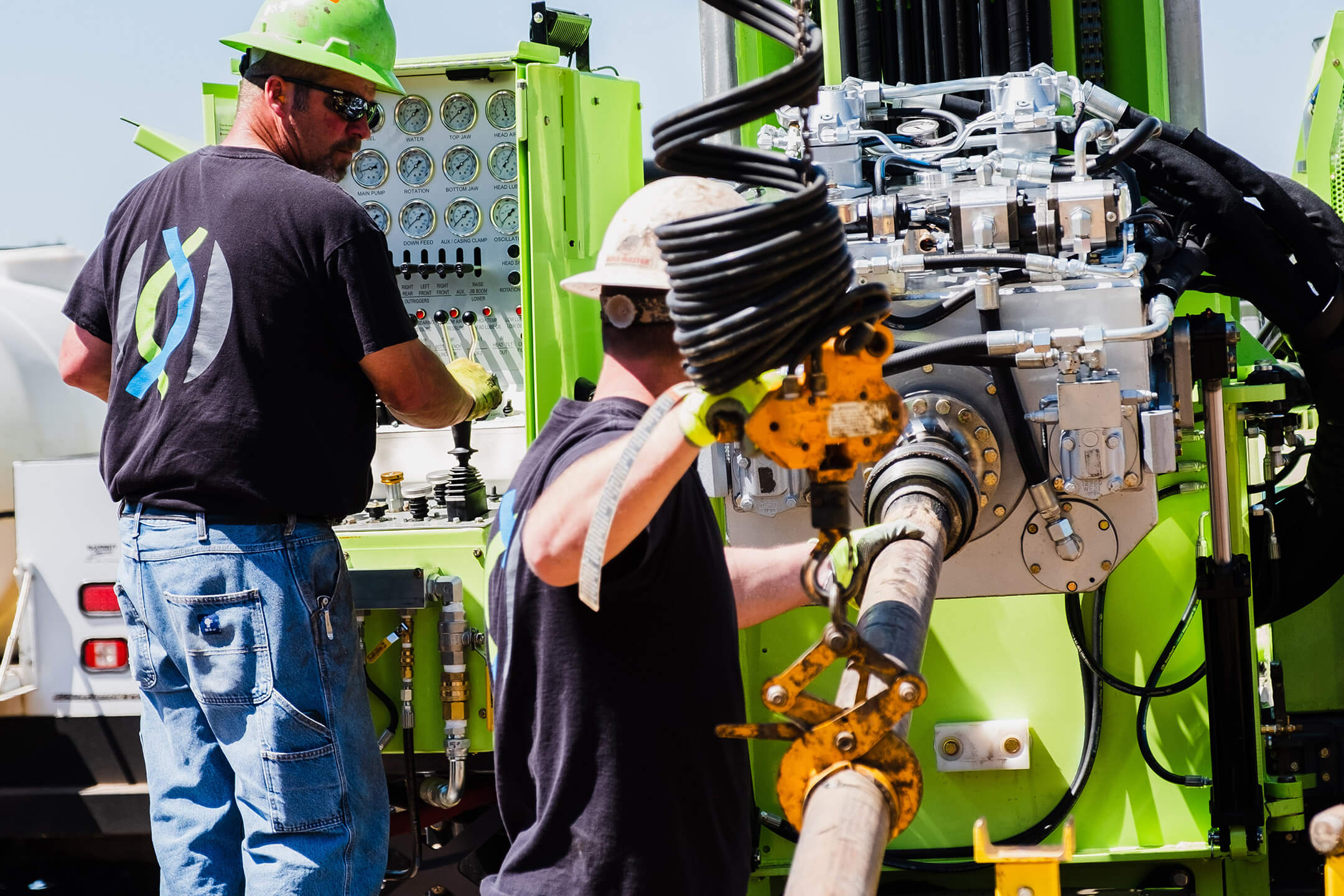

TSi 150 Series Sonic Drill Head Highlight 1 TSi 150 Series Sonic Drill Head Highlight 2 TSi 150 Series Sonic Drill Head Highlight 3 TSi 150 Series Sonic Drill Head Highlight 4 TSi 150 Series Sonic Drill Head Highlight 5 TSi 150 Series Sonic Drill Head Highlight 6 TSi 150 Series Sonic Drill Head Highlight 7
